WEDA30460 Atlas Copco, WEDA 30N 4 HP 460/3/60, 3" or 4" Discharge
WEDA30460 Atlas Copco, WEDA 30N 4 HP 460/3/60, 3" or 4" Discharge
Shipping calculated at checkout
WEDA 30N (WEDA D30N)
The WEDA 30N (WEDA D30N) is a robust, portable electric submersible drainage pump in the normal head (N) range. It efficiently handles clean water, sand-laden water, or dirty water with small solids on construction sites, mines, and industrial dewatering tasks.
Key Specifications (approximate, 3-phase version):
- Max flow: Up to 190–200 US gpm (≈ 45–51 m³/h)
- Max head: Up to 83–90 ft (≈ 25–28 m)
- Max solids handling: 0.27 in (7 mm)

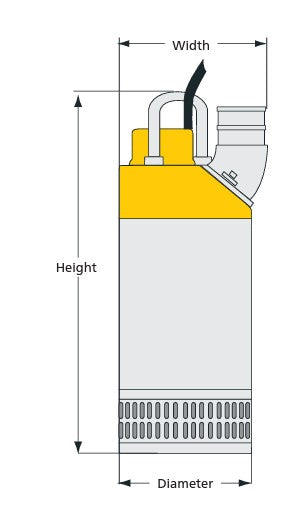

- Discharge: 3" (4" optional)
- Rated power: Around 3 HP (2.2 kW)
- Protection: IP68, insulation class F, max submersion depth typically 66 ft (20 m)
- Features: High efficiency, corrosion-resistant materials, easy installation, and strong performance in continuous duty.
This model balances flow and head well, making it popular for medium-duty dewatering where reliable solids passage and energy efficiency matter.
