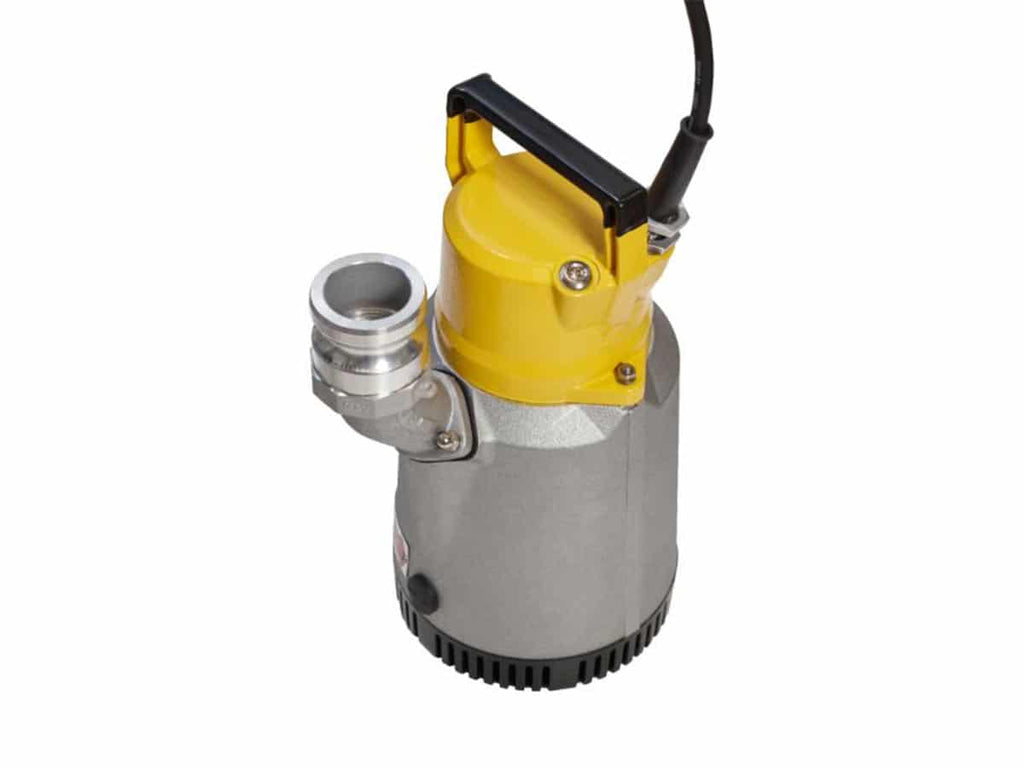

WEDA-10 460 Atlas Copco WEDA 10, Pump, 2 HP, 460/3/60, 2" discharge 27.5 lbs
WEDA-10 460 Atlas Copco WEDA 10, Pump, 2 HP, 460/3/60, 2" discharge 27.5 lbs
Shipping calculated at checkout
WEDA10460 Atlas Copco WEDA 10, Pump, 2 HP, 460/3/60, 2" discharge 27.5 lbs.
Portable electric submersible pump for dewatering of construction sites,
mines, flooded areas etc. Designed for handling liquid with abrasive
particles. Prot class IP68.
Electric Motor
3-phase: Squirrel cage induction motor with built-in contactor.
Insulation: Class F (+311F), IEC 85
Motor Protection
Thermal switch in each winding (+266 degree F)
Cable
Oil and wear resistant rubber cable 65ft 4xAWG 14
Shaft Seal
Double mechanical seals with oil compartment Primary seal: Silicon carbide against silicon carbide.
Secondary seal: Silicon carbide against silicon carbide. Available in a complete seal pack or as
separate items.
Bearings
Single-row ball bearing with C3 clearance.
Materials
Castings: Aluminium
Outer-casing: Aluminium
Shaft: Stainless steel
Fasteners: Stainless steel
Impeller: Cr-alloyed white cast iron, 55Rc
Wear parts: Natural rubber
