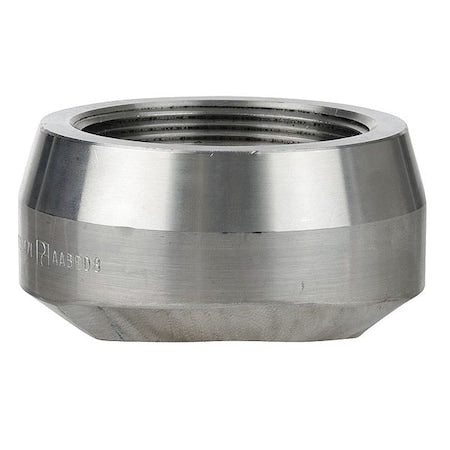

3/4 in FNPT 304 Stainless Steel Threaded Outlet, Class 3000

The ZORO SELECT 4307002830 is a stainless steel threaded outlet fitting intended for forming branch connections in piping systems; rated for operation up to 2570 psi at 100°F and up to 1965 psi steam at 350°F. Made from 304 stainless steel, it features a Class 3000 pressure rating and standard NPT female and socket connections, and is designed for threaded pipe joints without welding.

Key Features:

• - Material: 304 Stainless Steel for corrosion resistance and durability
• - Shape: Outlet for branching connections in piping systems
• - Class: 3000, indicating high pressure capacity
• - Connection Types: FNPT (female threaded) and Socket
• - Connection Gender: Female on Side A and Side B
• - Nominal Pipe Size: 3/4 in on both sides
• - Outside Diameter: 1 3/4 in
• - Pressure Ratings: Max. pressure of 2570 psi @ 100°F; Max. steam pressure of 1965 psi @ 350°F
• - Standards: MSS SP-97 compliant
• - Additional attributes: No pre-applied thread sealant, no included seal
