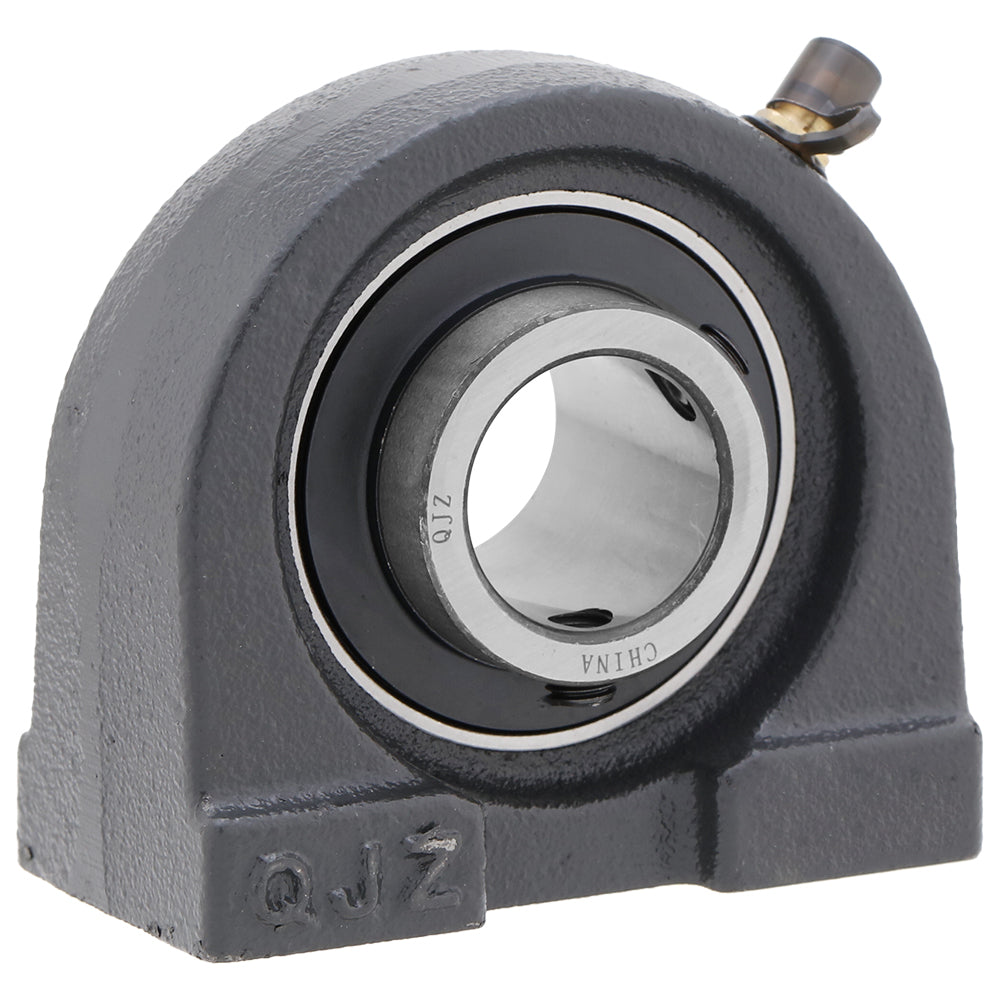

UCTB209-28 - Tapped Based Pillow Block Mounted Bearing Unit, 1.75" Bore (ID), Insert Bearing: UC209-28, Housing: TB209
UCTB209-28 - Tapped Based Pillow Block Mounted Bearing Unit, 1.75" Bore (ID), Insert Bearing: UC209-28, Housing: TB209
Shipping calculated at checkout
Tapped Base Pillow Block Mounted Unit Bearing
The UCTB series tapped base pillow block mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit features a tapped base housing for secure mounting, an insert bearing with set-screw locking, and durable housing designed for easy installation and long service life.
| Part Number | UCTB209-28 |
|---|---|
| Shaft Bore (ID) | 1.75 in | 44.45 mm |
| Length | 5 in | 127 mm |
| Height | 4.248 in | 107.899 mm |
| Width | 2 in | 50.8 mm |
| Bolt to Bolt Spacing | 3.752 in | 95.3 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
