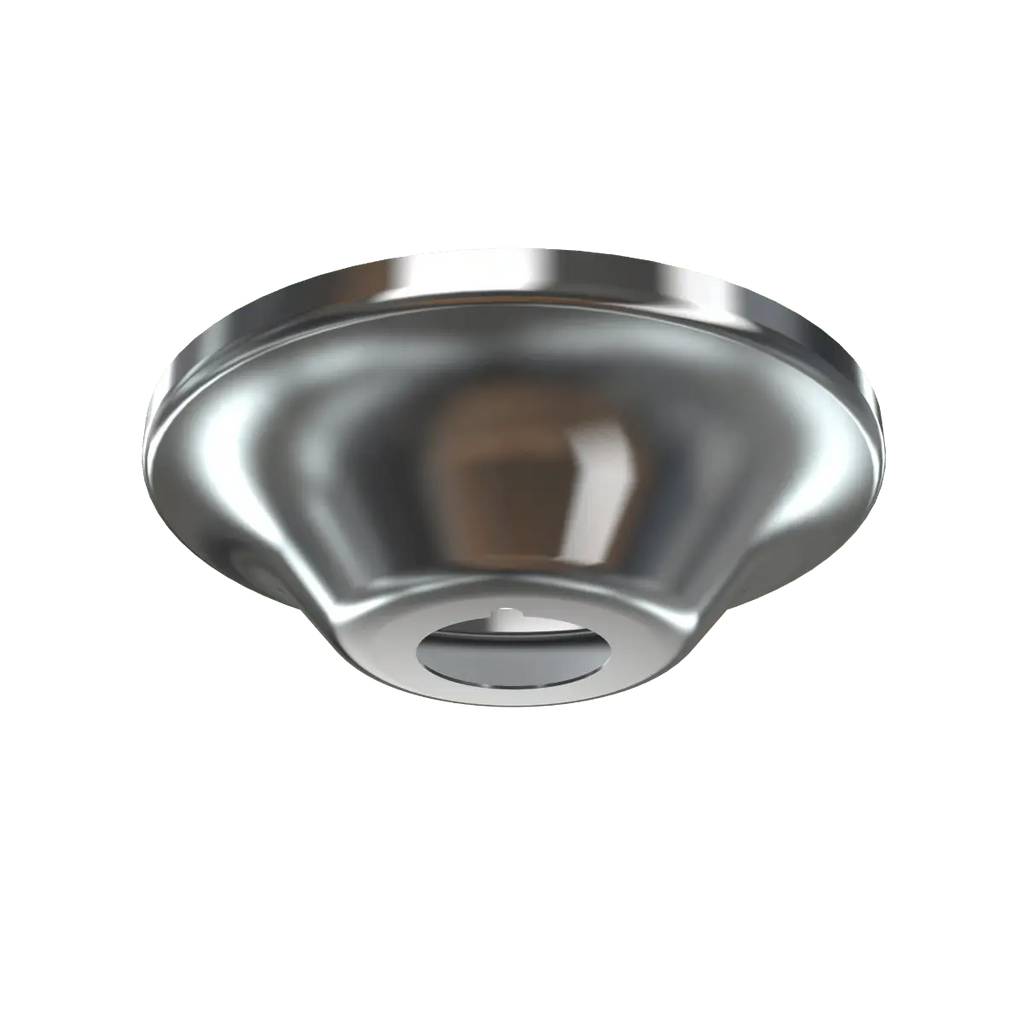

Raised Surface Mount Escutcheons for Sprinkler Systems
1/2 in.
$4.99
Sale price
$4.99
Regular price
$5.99
Skip to product information
Request for Tax Exemption
Request a Quote
Raised Surface Mount Escutcheons for Sprinkler Systems
$4.99
Sale price
$4.99
Regular price
$5.99
Shipping calculated at checkout
The Viking Raised Surface Mount Escutcheon provides a clean, secure interface between fire sprinkler heads and ceiling surfaces in commercial, industrial, and institutional fire suppression assemblies. Installed within wet, dry, or pre-action sprinkler piping setups, this component creates a smooth transition that minimizes gaps between piping and the ceiling to effectively support fire containment and smoke control.
Designed to comply with NFPA 13 installation guidelines, these escutcheons maintain system integrity while satisfying critical code requirements for building safety and inspections.
Key Features & Construction
- Ductile Iron Construction: Crafted from durable, corrosion-resistant material built to withstand demanding fire protection environments.
- Raised Surface Design: Forms a smooth transitional profile that minimizes unwanted gaps around sprinkler pipes.
- Metallic Finish: Smooth exterior surface actively resists mechanical wear and installation impacts.
- System Integration: Engineered to fit standard sprinkler pipe sizes while pairing seamlessly with Viking sprinkler heads.
Technical Specifications & Compliance Table
| Manufacturer / Brand | Viking |
| Model / Series Number / SIN | Raised Surface Mount Escutcheons |
| Connection / Thread Size & Type | 1/2" NPT and 3/4" NPT Options Available |
| Pressure Rating (WWP / Max Working Pressure) | N/A |
| K-Factor | N/A |
| Temperature Rating / Response Type | N/A |
| Material / Body Construction | Ductile Iron |
| Agency Listings & Approvals | UL Listed, FM Approved |
| Applicable NFPA Standards | NFPA 13 |
Submittal & Installation Note: Always verify local Authority Having Jurisdiction (AHJ) requirements and consult manufacturer technical cut sheets prior to commencing installation.
Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
