Kidde Remote Zone Interface Module for Fire Safety Contractors
$821.69
Sale price
$821.69
Regular price
$903.99
Shipping calculated at checkout

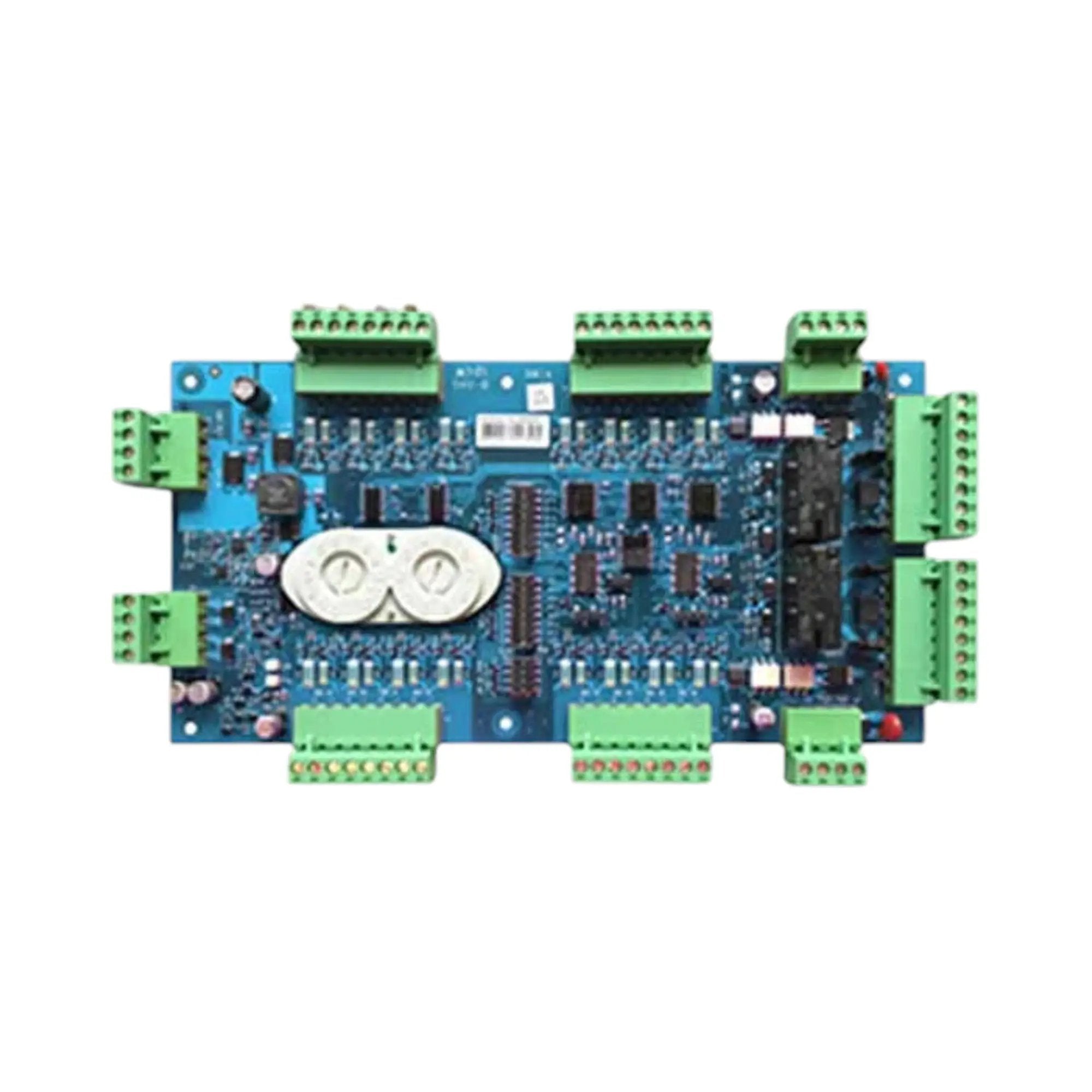

The Kidde Remote Zone Interface Module functions as an addressable system component designed to interface conventional detection zones directly with compatible Kidde fire alarm control panels. Installed within commercial life safety architecture, this interface module manages multi-zone detection arrays, translating status changes from conventional initiating devices into intelligent loop communications.
This module fulfills the strict design and signaling requirements governed by NFPA 72 for National Fire Alarm and Signaling Code compliance. It ensures proper supervision of initiating device circuits, zone annunciation, and reliable transmission of alarm, supervisory, and trouble signals to the primary control unit.
Key Features & Construction
- Multi-Zone Monitoring: Supports sixteen Class B Initiating Device Circuits to efficiently track and monitor multiple hazard zones across a facility.
- Supervised Outputs: Includes two Class B Supervised Output Circuits for dependable ancillary device supervision and system control.
- Rotary Switch Addressing: Features onboard rotary switches for straightforward, physical address configuration during field setup.
- Secure Physical Mounting: Ships complete with a specialized mounting bracket designed for rapid and rigid enclosure installation by fire safety contractors.
- System Compatibility: Engineered specifically for integration within Kidde FX Analog Addressable Fire Alarm Systems.
Technical Specifications & Compliance Table
| Technical Parameter | Specification Details |
|---|---|
| Manufacturer / Brand | Kidde |
| Model / Series Number | Remote Zone Interface Module / FX Analog Addressable Systems |
| Connection / Circuit Types | 16 x Class B Initiating Device Circuits; 2 x Class B Supervised Output Circuits |
| Addressing Method | Rotary Switch Addressing |
| Enclosure / Mounting | Includes Mounting Bracket |
| Agency Listings & Approvals | UL Listed, FM Approved |
| Applicable NFPA Standards | NFPA 72 |
Contractors and facility managers must verify all local Authority Having Jurisdiction (AHJ) mandates and system compatibility requirements prior to initiating installation. Always review the official engineering guidelines and wiring manuals.
Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
