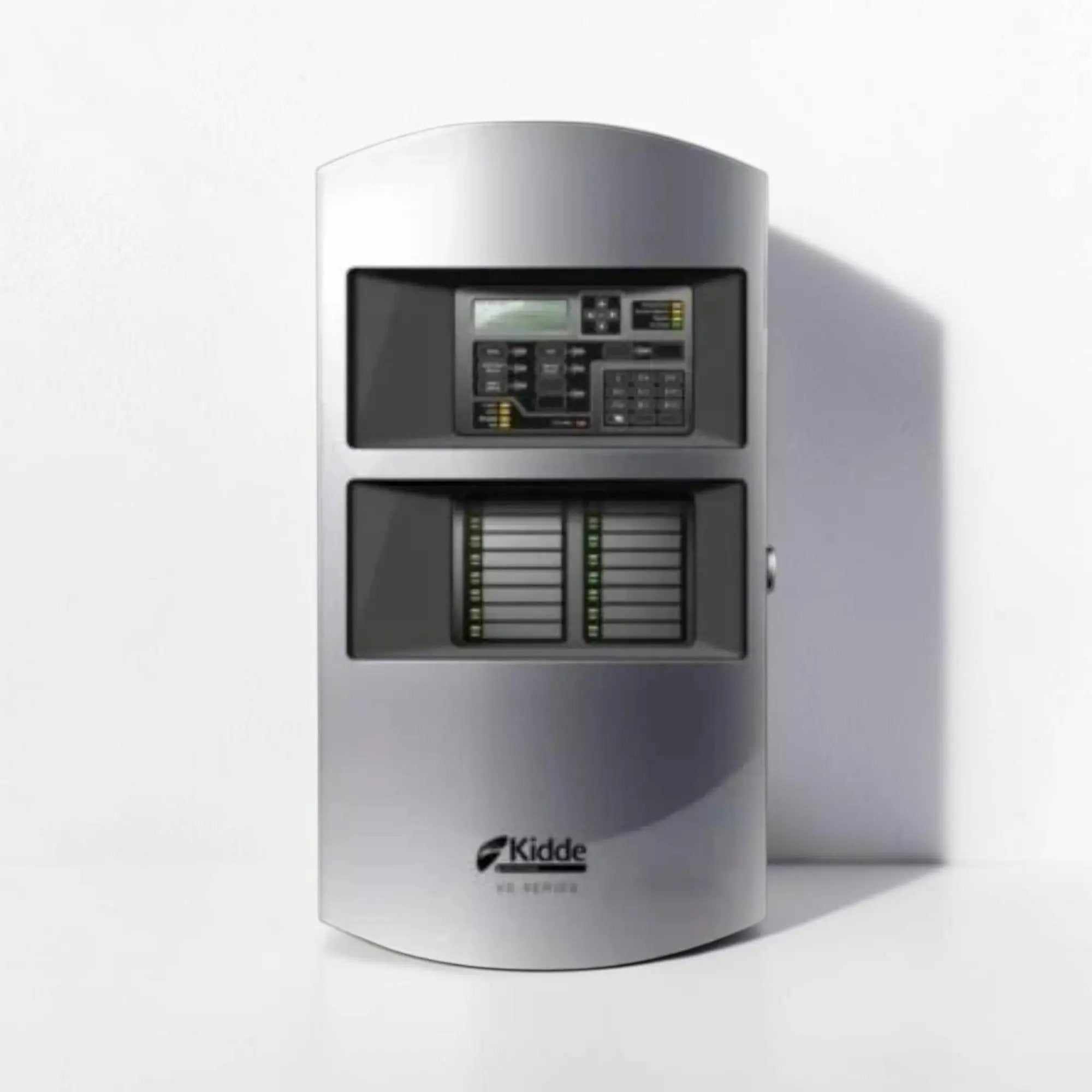

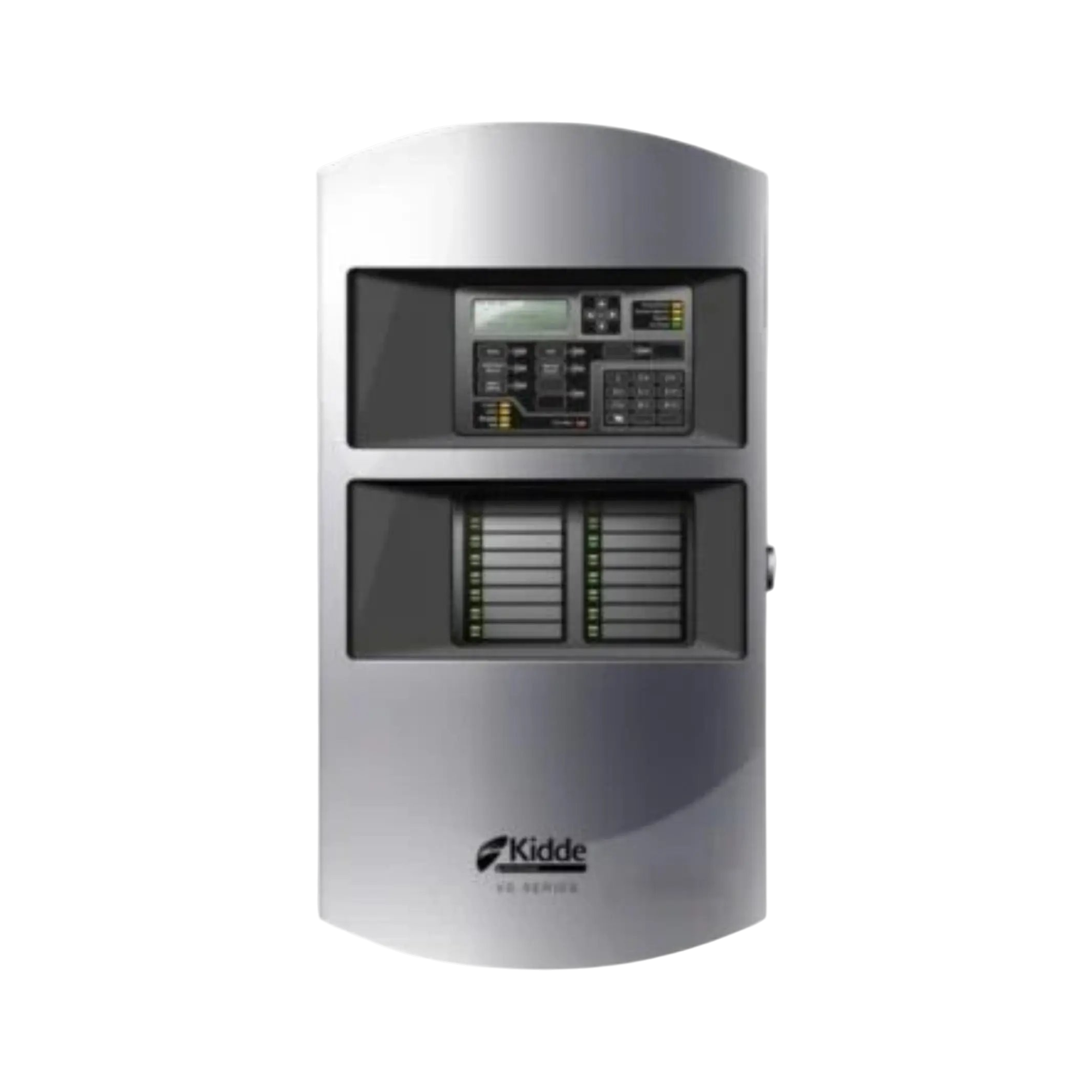

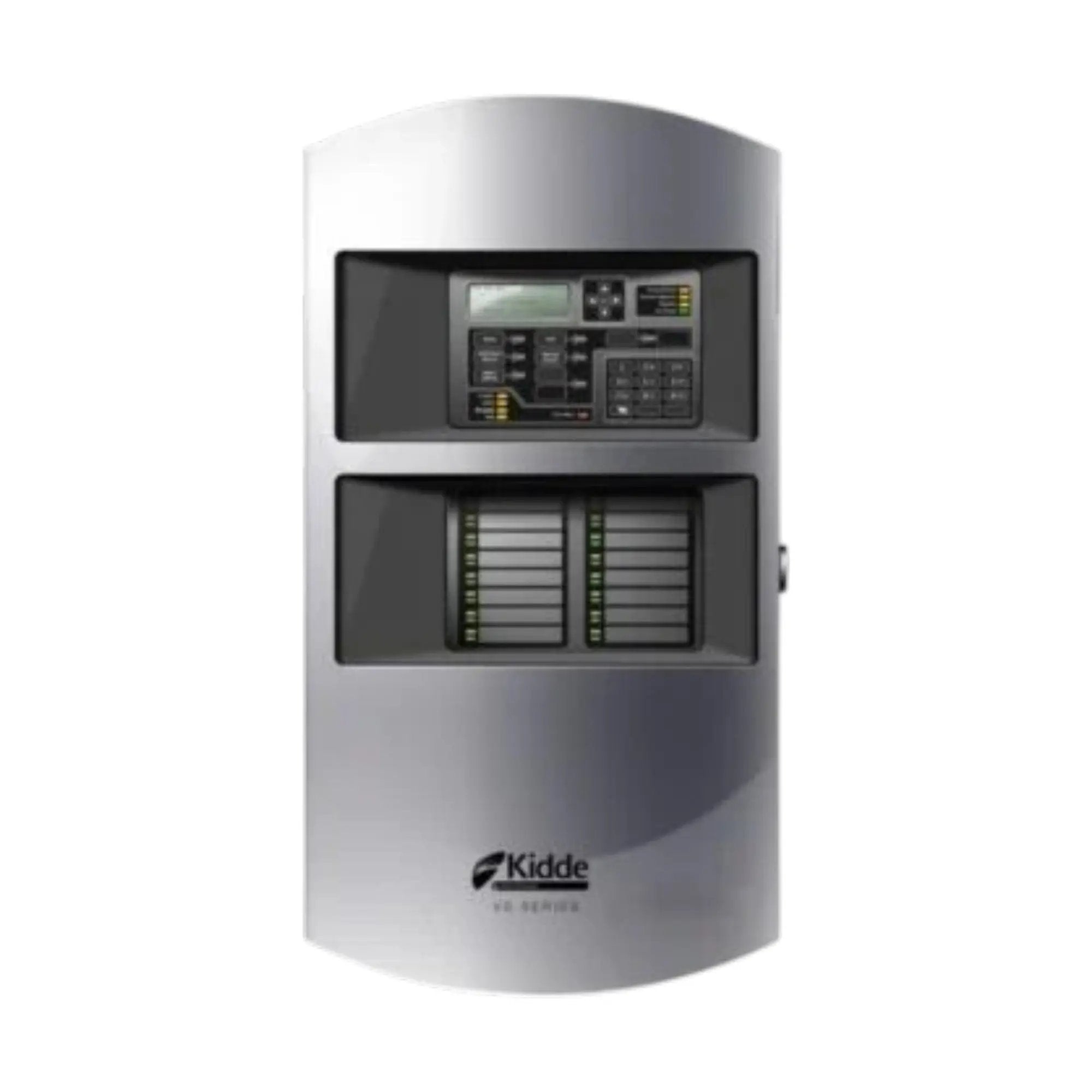

Kidde Four Loop Fire Alarm System 250-Point UL/FM Approved

The Kidde Four Loop Fire Alarm System functions as the primary control center for commercial and industrial life safety networks. It mounts directly onto facility walls within electrical or control rooms to continuously monitor addressable detection devices and orchestrate emergency signaling the moment an anomaly occurs.

This control panel operates in compliance with NFPA 72 standards for National Fire Alarm and Signaling Code systems. It satisfies strict commercial code requirements, providing the documented reliability and testing parameters demanded by local inspectors during final occupancy approvals.

Key Features & Construction

• Four Loop Architecture: Supports expandable loop configurations with 1 loop installed to accommodate complex commercial and industrial building layouts.
• 250-Point Capacity: Manages up to 250 addressable points per loop for precise device identification during an alarm event.
• 110V Power Supply: Operates on standard commercial electrical feeds to maintain continuous system readiness.
• Durable Enclosure: Features a surface-mount cabinet with a gray door design that protects internal circuitry while blending into professional utility spaces.
• Agency Approvals: Carries UL Listing and FM Approved certifications to meet strict safety benchmarks.

Technical Specifications & Compliance

Contractors must verify all local Authority Having Jurisdiction (AHJ) requirements, seismic attachment rules, and specific signaling integration mandates prior to installation. Always review the official engineering cut sheets and wiring manuals for complete terminal block configurations and battery backup calculations.

Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
