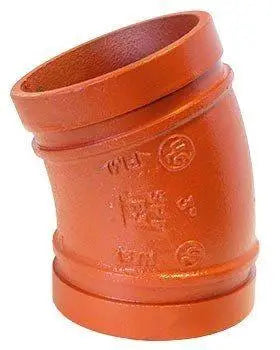

Grooved 22.5 Degree Elbow Domestic Pipe Fitting

The ASC Grooved 22.5 Degree Elbow Domestic Pipe Fitting provides reliable, code-compliant directional changes in commercial and residential fire protection and plumbing piping networks. Installed within wet, dry, or preaction fire sprinkler systems and domestic water lines, this component redirects water flow smoothly with minimal flow disturbance to maintain optimal system pressure and coverage.

This fitting satisfies strict life safety mandates by complying with NFPA 13 requirements for fire protection installations. It carries essential industry certifications, including UL Listing and FM Approved status, verifying that the assembly meets rigorous safety and performance criteria required by code authorities for commercial building projects.

Key Features & Construction

• Ductile Iron Construction: Manufactured from high-grade ductile iron to deliver exceptional structural strength and long-term durability under demanding operating pressures.
• Precise 22.5-Degree Bend: Engineered to provide accurate directional redirection in complex pipe layouts without causing excessive flow restriction.
• Grooved End Connections: Features standard grooved mechanical joint connections that simplify integration with existing piping and accelerate assembly compared to welded or threaded methods.
• Application Versatility: Suitable for both commercial fire sprinkler systems and domestic water piping networks.

Technical Specifications & Compliance Table

Verify all local Authority Having Jurisdiction (AHJ) guidelines and review the manufacturer technical documentation prior to beginning installation.

Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
