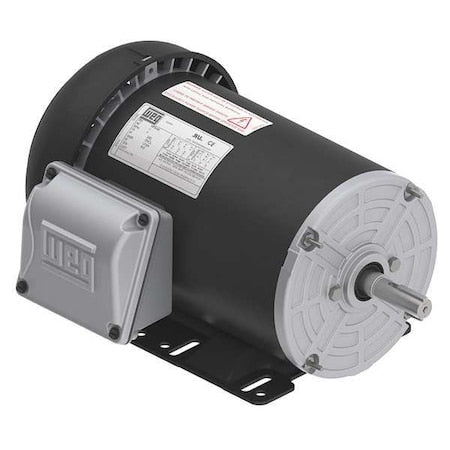

Three-Phase General Purpose Motor, 0.5 HP, 56 Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM
Three-Phase General Purpose Motor, 0.5 HP, 56 Frame, 208-230/460V AC Voltage, 1800 Nameplate RPM
Shipping calculated at checkout
The WEG - .5018ES3E56-S is a 3-Phase AC General Purpose Motor, widely used in industrial and commercial settings for power transmission and pneumatics applications. This motor converts electrical energy into mechanical energy to operate various types of machinery, making it versatile across different sectors from manufacturing lines to HVAC systems.
Key Features of the WEG - .5018ES3E56-S General Purpose Motor:
- Duty Cycle: The motor is designed for continuous operation within the specified parameters.
- Frame: With a frame size of 56, this motor conforms to standard specifications for compatibility and interchangeability.
- Full Load Amps: The maximum current draw at full capacity is 0.9 amps, crucial for determining power supply requirements and ensuring safe operation.
- Horsepower (HP): With an output of 0.5 HP, this motor is suitable for use in various industrial applications as per the provided specifications.
- Inverter Rated: Yes - This indicates that the motor can be used with a variable frequency drive according to manufacturer's guidelines.
- Motor Bearings: The internal ball bearings are intended to mitigate friction between moving parts as per design specifications.
- Motor Enclosure Design: TEFC (Totally Enclosed Fan Cooled) design protects internal components from environmental factors while also determining its cooling method
- Nominal Efficiency: A nominal efficiency rating of 77 provides an indication of its potential conversion rate from electrical power to mechanical power under specified conditions
- Ship Pack Height: 9.5
- Ship Pack Length: 15.7
- Ship Pack Width: 12.3
