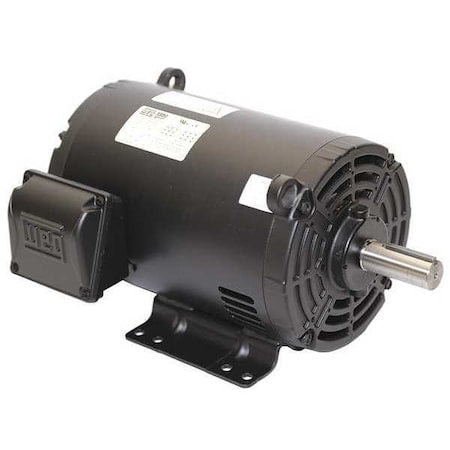

Three-Phase General Purpose Motor, 2 HP, 143/5T Frame, 230/460V AC Voltage, 1740 rpm Nameplate RPM
Three-Phase General Purpose Motor, 2 HP, 143/5T Frame, 230/460V AC Voltage, 1740 rpm Nameplate RPM
Shipping calculated at checkout
The WEG - 00218OT3E145T-S is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It efficiently converts electrical energy into mechanical energy to operate various types of machinery across diverse sectors such as manufacturing lines and HVAC systems.
Key Features of the WEG - 00218OT3E145T-S General Purpose Motor:
- CC Number: The unique identifier CC029A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: This motor is designed for a continuous duty cycle under normal operating conditions.
- Frame: The frame size of 143/5T conforms to standard specifications ensuring compatibility and interchangeability.
- Inverter Rated: Yes – signifies that the motor can be powered by a variable frequency drive for precise control over speed and torque.
- Nominal Efficiency: The motor has an efficiency rating of 86.5% under standard testing conditions.
- Voltage Compatibility: Rated for operation within the specified voltage ranges from 200-230/440V AC, 208-220/440V AC, to 208-230/460V AC & at a specific supply voltage of 208 volts (Usable @208V).
- Motors Bearings: Ball bearings are incorporated as part of the design which may help reduce friction between moving parts depending on load conditions
- Ship Pack Height: 9.6
- Ship Pack Length: 15.5
- Ship Pack Width: 12.6
