Three-Phase General Purpose Motor, 1.5 HP, 143TC Frame, 575V AC Voltage, 3600 Nameplate RPM

Three-Phase General Purpose Motor, 1.5 HP, 143TC Frame, 575V AC Voltage, 3600 Nameplate RPM

$508.19
$508.19
Skip to product information
Three-Phase General Purpose Motor, 1.5 HP, 143TC Frame, 575V AC Voltage, 3600 Nameplate RPM
  • Three-Phase General Purpose Motor, 1.5 HP, 143TC Frame, 575V AC Voltage, 3600 Nameplate RPM
Three-Phase General Purpose Motor, 1.5 HP, 143TC Frame, 575V AC Voltage, 3600 Nameplate RPM

Three-Phase General Purpose Motor, 1.5 HP, 143TC Frame, 575V AC Voltage, 3600 Nameplate RPM

$508.19
$508.19

Shipping calculated at checkout

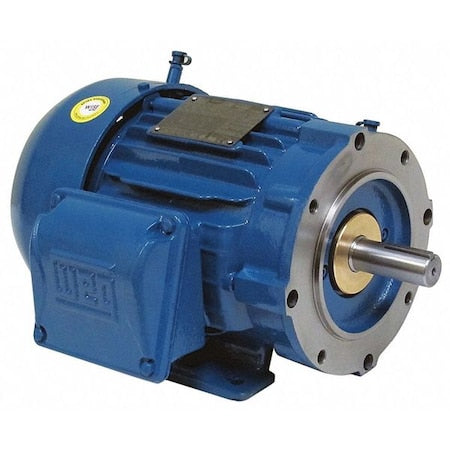

 General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3480 rpm, Frame 143TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.57 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CE, CSA, NOM, UL
