Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, Brass
Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, Brass
Shipping calculated at checkout

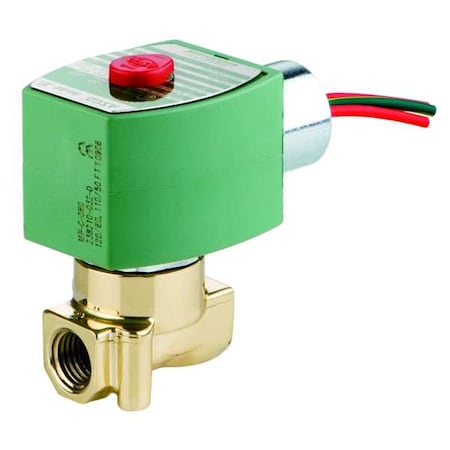

The ASCO 8262H210 is a 2-Way/2-Position direct-acting solenoid valve; operation is defined by manufacturer-specified media compatibility, temperature, and pressure ranges. It features a normally closed valve starting configuration. Constructed with a brass body and NBR seal material, the valve is compatible with the listed media within the manufacturer-specified operating ranges (air, ammonia, biodiesel fuel, fuel oil, hot water, inert gases, light oil, LPG, natural gas, oxygen, steam, and water). The valve can be mounted in either horizontal or vertical orientation and operates up to a maximum ambient temperature of 140°F and a fluid temperature up to 180°F.
Key Features:
- - Valve Design: 2-Way/2-Position with normally closed configuration
- - Operation Type: Direct Acting
- - Body Material: Brass with NBR (Buna-N) seals
- - Nominal Pipe Size: 1/4 in with NPT thread type for inlet and outlet (NPTF connections)
- - Orifice Diameter: 9/32 in
- - Operating Pressure Differential: Maximum 65 psi Air/Inert Gas, 60 psi Light Oil, 75 psi Water; Minimum 0 psi for Air/Inert Gas, Light Oil, and Water
- - Electrical Specifications: 120V AC, 10.1 W wattage, and 50 Hz/60 Hz frequency
- - Coil Enclosure: Without Junction Box, Watertight with Coil Insulation Class F
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - IP66 and Standards: CSA, UL Listed
- - Dimensions: Overall Height 3-1/8 in, Length 1-9/16 in, Width 1-15/16 in
- - Response Time: 1 sec
- - Includes Coil and Seal components
- Ship Pack Height: 3.3
- Ship Pack Length: 4.2
- Ship Pack Width: 3.6
