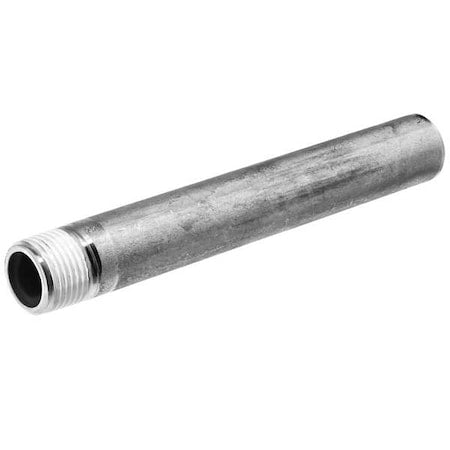

PipeNipple,SS,1/4",NPT,12"

The ZORO SELECT ZUSA-PF-1766 is a stainless steel nipple with male threads on both ends, designed to connect female-threaded fittings, valves, or pipes. Rated for use with air, natural gas, non-potable water, propane, and steam within the specified operating conditions. It is rated for operation up to 150 psi at 72F; compatible with Schedule 40 piping; constructed from stainless steel (304 grade) to provide corrosion resistance.

Key Features:

• - Material: Stainless Steel (304 grade) and weld construction
• - Application: Air, Natural Gas, Non-Potable Water, Propane, Steam
• - Inside Diameter: 23/64 in
• - Overall Length: 12 in
• - Outside Diameter: 35/64 in
• - Nominal Pipe Size: 1/4 in
• - Fitting Type: Nipple with male threads
• - Thread Standard: NPT on one end (male)
• - Connection Type: Threaded on Side A, Unthreaded on Side B
• - Fitting Compatibility: Schedule 40
• - Maximum Operating Pressure: 150 psi @ 72 Degrees F
• - Maximum Steam Pressure: 150 psi @ 360 Degrees F
• - Weld Type: Electric Resistance Weld
• - Resistance properties: Corrosion-resistant; Chemical-resistant; Abrasion-resistant; Oil-resistant
• - Wall Thickness: 0.088 in
• - Standards: ANSI/ASME B1.20.1; ASTM A312; ASTM A733

• Ship Pack Height: 0.8
• Ship Pack Length: 12.1
• Ship Pack Width: 3.4
