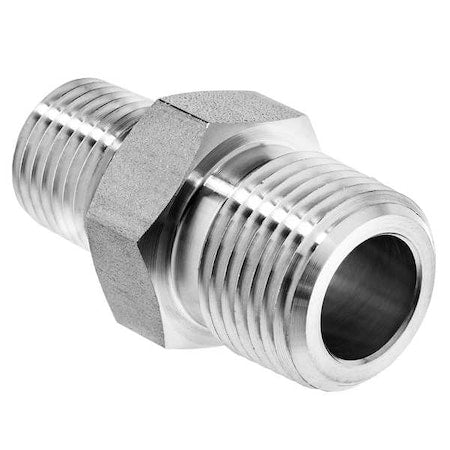

StainlessSteel,HexNipple,3/8"NPTx1/8"NPT

The ZORO SELECT - ZUSA-PF-7829 is a stainless steel instrumentation pipe fitting in the form of a reducing hex nipple. It is made from 304 stainless steel and designed for connecting two female-threaded pipes or fittings of different diameters. Media compatibility: air, natural gas, oil, potable water, and steam per product specification. It features male NPT connections on both ends with different nominal pipe sizes, allowing for a transition between 3/8 inch and 1/8 inch piping. Joints rated for operation up to 7,300 psi in accordance with ANSI B31.1. Key Features:

• - Material: 304 stainless steel.
• - Connection type: Male NPT on both ends, with Side A at 3/8 in nominal pipe size and 18 threads-per-inch, and Side B at 1/8 in nominal pipe size and 27 threads-per-inch.
• - Shape: Reducing hex nipple with hex size of 3/4 in for wrench tightening.
• - Maximum operating pressure: 7,300 psi.
• - Overall length: 1 1/4 in.
• - Includes no pre-applied thread sealant or additional seals.
• - Low lead compliant per applicable regulations for potable water applications.
• - Conforms to ANSI B31.1 standard.

• Ship Pack Height: 0.8
• Ship Pack Length: 1.4
• Ship Pack Width: 0.8
