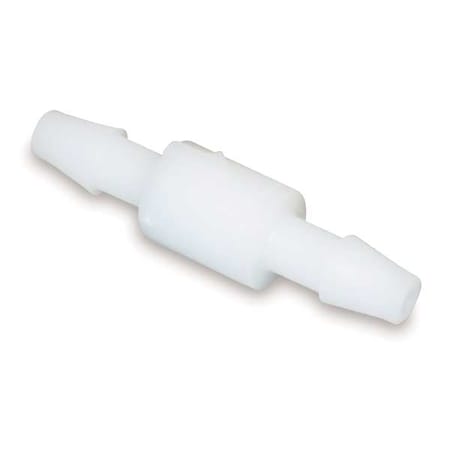

1/4" Barb Polypropylene Ball Cone Spring Check Valve
$5.57
Sale price
$5.57
Regular price
Shipping calculated at checkout
ZORO SELECT Series 695 ball cone spring check valve is an inline check valve with 2 in overall length for air and fluid applications within the listed specifications. It is designed for one-direction flow applications using a spring-loaded ball check mechanism. This valve features a polypropylene body and seat with 1/4 in barb x barb connections for 1/4 in pipe or tube size applications.
Key Features:
- Valve type: Ball cone spring check valve with single-flow inline ball cone design
- Size: 1/4 in nominal valve size with 1/4 in barb x barb connections
- Body material: Polypropylene
- Check mechanism: Ball with stainless steel check mechanism and stainless steel spring
- Seal material: FKM/Viton; seat material: Polypropylene
- Cracking pressure: 1 psi
- Flow coefficient (Cv): 0.2
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 degrees F to 140 degrees F
- Mounting orientation: Horizontal or vertical
- Overall length: 2 in
- Ship Pack Height: 1
- Ship Pack Length: 6
- Ship Pack Width: 1
