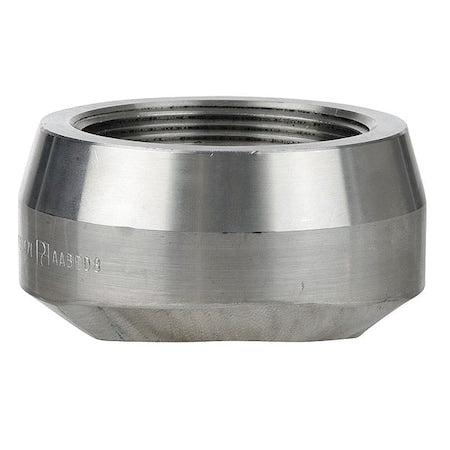

1/2 in FNPT 304 Stainless Steel Threaded Outlet, Class 3000
1/2 in FNPT 304 Stainless Steel Threaded Outlet, Class 3000
Shipping calculated at checkout
The ZORO SELECT - 4307002820 is a stainless steel threaded outlet pipe fitting made from 304 stainless steel alloy. It features a female NPT threaded connection on Side A with a nominal pipe size of 1/2 inch and an outlet socket connection on Side B sized at 3/4 inch. It provides threaded connections for attaching pipes, valves, gauges, instruments, or plugs without welding. It is rated to Class 3000 pressure standards and supports a maximum internal pressure of 3000 psi as well as a maximum steam pressure of 1965 psi at 350 degrees Fahrenheit.
Key Features:
- - Material: 304 Stainless Steel
- - Type: Threaded Outlet with female NPT side and socket side connections
- - Nominal Pipe Sizes: 1/2 inch (female NPT) x 3/4 inch (socket)
- - Pressure Class: Class 3000
- - Maximum Pressure: 3000 psi
- - Maximum Steam Pressure: 1965 psi @ 350°F
- - Color: Silver
- - Dimension Side A Outside Diameter: 11/16 inch
- - Meets MSS SP-97 standard
- - Does not include pre-applied thread sealant or seals
