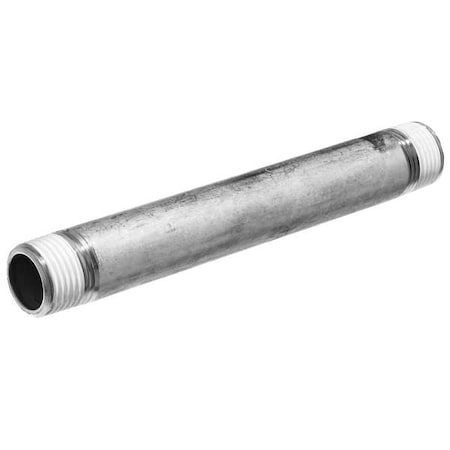

PipeNipple,SS,1/2",NPTxNPT,12"

The ZORO SELECT - ZUSA-PF-2890 is a stainless steel nipple designed for pipe connections in various systems. It features male threads on both ends, allowing it to connect two female-threaded fittings or pipes, such as valves or other fittings. Constructed from 316 stainless steel, it offers corrosion resistance and durability. The nipple is compatible with Schedule 40 pipes, has an inside diameter of 5/8 inches, an outside diameter of 27/32 inches, and a length of 12 inches. It is suitable for use with multiple applications including air, natural gas, non-potable water, propane, and steam, and is rated for operation within the specified pressure and temperature ranges.

Key Features:

• - Material: 316 Stainless Steel, known for corrosion and chemical resistance.
• - Fitting Type: Nipple, a short pipe with male threads on both ends.
• - Connection Type: Threaded on both ends, with male gender on each side.
• - Thread Standard: NPT (National Pipe Thread).
• - Compatibility: Designed for Schedule 40 pipes.
• - Inside Diameter: 5/8 inch for fluid flow.
• - Outside Diameter: 27/32 inch, indicating the fitting’s external width.
• - Overall Length: 12 inches.
• - Welding Method: Electric Resistance Weld (ERW).
• - Resistance Properties: Abrasion-Resistant, Chemical-Resistant, Corrosion-Resistant, Diesel-Resistant, Oil-Resistant, UV-Resistant.
• - Standards: ANSI/ASME B1.20.1, ASTM A312, ASTM A733.
• - Max Operating Pressure: 150 psi, rated for operation within the specified pressure and temperature ranges.

• Ship Pack Height: 0.9
• Ship Pack Length: 12.1
• Ship Pack Width: 0.9
