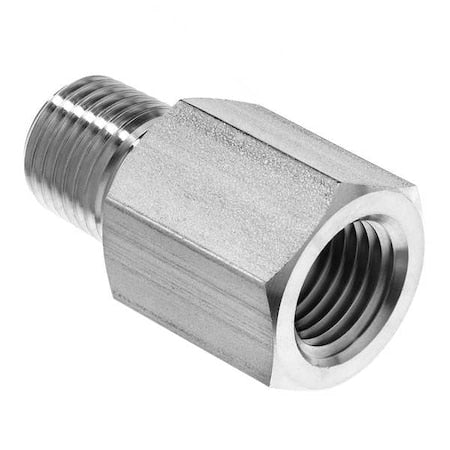

Adapter, Stainless Steel, 3/8 in Female NPT x 3/8 in Male BSPT, 316 Grade, 5,300 psi

The ZORO SELECT - ZUSA-PF-8754 is a stainless steel instrumentation pipe fitting designed as an adapter to connect components with different connection types and thread standards. Constructed from 316 stainless steel; intended for instrumentation piping applications in accordance with ANSI B31.1 and compliant with potable water low-lead regulations. This adapter features a female NPT connection on Side A and a male BSPT connection on Side B, both with a nominal pipe size of 3/8 inch. Joint rated for up to 5,300 psi, intended for instrumentation, sampling, and control piping. The fitting complies with ANSI B31.1 standards and meets low lead requirements for potable water systems. Key Features:

• - Material Grade: 316 stainless steel
• - Overall Length: 1 7/16 in
• - Side A: Female NPT, 3/8 in nominal pipe size, 18 threads per inch
• - Side B: Male BSPT, 3/8 in nominal pipe size, 19 threads per inch
• - Hex Size for wrenching: 7/8 in across flats
• - Maximum Operating Pressure: 5,300 psi
• - Includes no pre-applied thread sealant or sealing components
• - Color: Silver
• - Certified compliant with ANSI B31.1 and low lead regulations for potable water

• Ship Pack Height: 1
• Ship Pack Length: 1.5
• Ship Pack Width: 1
