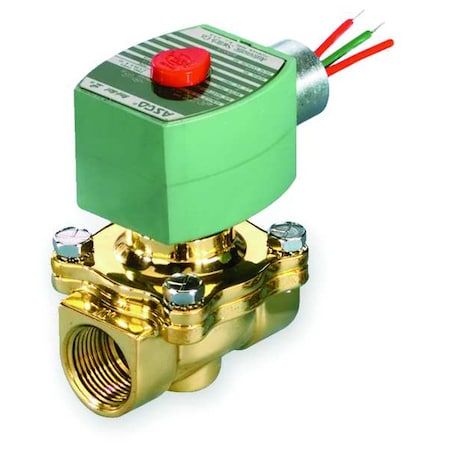

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, High Flow, Brass
Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, High Flow, Brass
Shipping calculated at checkout
The ASCO 8030G003 is a 2-way, 2-position, normally closed solenoid valve designed for direct acting operation. It features a brass body with NBR seals and IP66-rated environmental protection (dust/in water ingress) enabling indoor/outdoor operation. Including the coil, it operates on 120V AC at 50 and 60 Hz frequencies, consuming 10.1 watts. Media compatibility: Air, Inert Gas, Water; maximum fluid temperature 200°F and an ambient temperature range of 14°F to 140°F. It has a 3/4 in nominal pipe size with NPTF inlet and outlet connections.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation: Direct Acting
- - Body Material: Brass
- - Seal Material: NBR
- - Electrical: 120V AC, 10.1 W, 50/60 Hz
- - Coil Enclosure: Without Junction Box; IP66-rated enclosure
- - Electrical Connection: 1/2 in Conduit Hub
- - IP66-rated environmental protection
- - IP Rating: 66
- - Maximum Ambient Temperature: 140°F; Minimum: 14°F
- - Maximum Fluid Temperature: 200°F
- - Media compatibility: Air, Inert Gas, Water
- - Maximum Operating Pressure Differential: 2 psi (Air/Inert Gas, Water)
- - Minimum Operating Pressure Differential: 0 psi (Air/Inert Gas, Water)
- - Orifice Diameter: 3/4 in
- - Nominal Pipe Size: 3/4 in
- - Connection Type: Inlet and Outlet NPTF threads
- - Mounting Orientation: Vertical
- - Overall Dimensions: Length 2-13/16 in, Width 2-1/4 in, Height 4-1/16 in
- - Valve Type: High Flow
- - Standards: CSA, FM, UL Listed
- Ship Pack Height: 3
- Ship Pack Length: 5.2
- Ship Pack Width: 4.3
