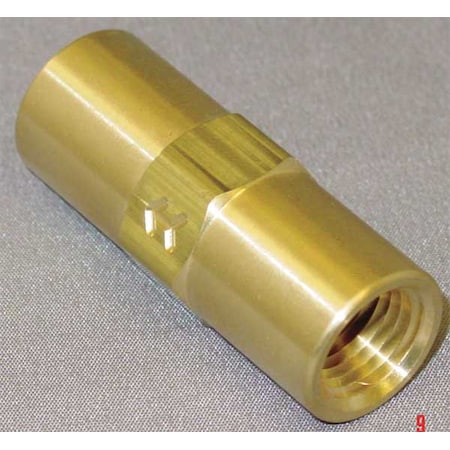

1/4" FNPT Brass Piston Spring Check Valve
$22.67
Sale price
$22.67
Regular price
Skip to product information
Request for Tax Exemption
Request a Quote
1/4" FNPT Brass Piston Spring Check Valve
$22.67
Sale price
$22.67
Regular price
Shipping calculated at checkout
ZORO SELECT 415 series 1/4 in FNPT brass piston spring check valve is an inline valve for air and compatible fluid service. Its spring-loaded piston is intended for one-way flow applications and to limit reverse flow when flow slows or reverses. The valve features a brass body, brass seat, and brass check mechanism with a stainless steel spring, and it supports horizontal or vertical mounting.
Key Features:
- 1/4 in valve size with FNPT x FNPT female NPT connections on both ends
- Inline piston design with single-flow configuration
- Brass body, brass seat, and brass check mechanism
- Viton/FKM with TFE, carbon-filled seal
- 1 psi cracking pressure
- Maximum operating pressure and maximum water pressure: 500 psi
- Operating temperature range: -20 degrees F to 180 degrees F
- Cv rating: 1.2
- Overall length: 1.8 in; length: 1 25/32 in; hex size: 11/16 in
- UL and UR listed
- Ship Pack Height: 0.8
- Ship Pack Length: 5
- Ship Pack Width: 3
