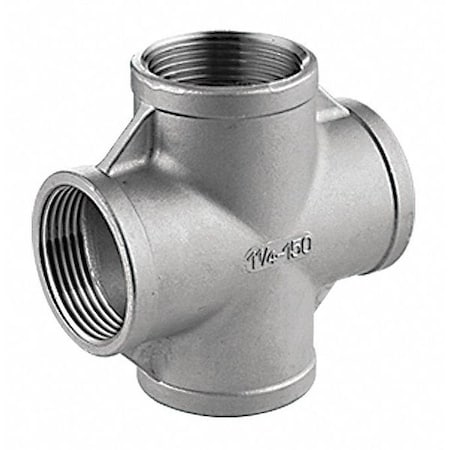

Cross, SS, Thrd 3/4", Thrd 3/4"

The ZORO SELECT - 600X111N034 is a stainless steel cross pipe fitting constructed from 316 stainless steel. It features four female NPT threaded openings arranged at 90° in one plane, each with a nominal pipe size of 3/4 inch. Four-way cross with four NPT female openings for joining or dividing flow among four pipe runs. Intended for use with air, natural gas, non-potable water, oil, potable water, and steam within the specified Class 150 pressure ratings (operating up to 300 psi; steam up to 150 psi). Operating pressure rating: 300 psi; steam pressure rating: 150 psi. Material conforms to ASTM A-351; threads conform to ANSI/ASME B1.20.1; pressure ratings meet MSS-SP-114 Class 150.

Key Features:

• - Four female NPT threaded connections, nominal size 3/4 inch each
• - Made of 316 stainless steel alloy
• - Operating pressure rating: 300 psi; steam pressure rating: 150 psi
• - Intended for use with air, natural gas, non-potable water, oil, potable water, and steam within the specified Class 150 pressure ratings (operating up to 300 psi; steam up to 150 psi)
• - Color: Silver
• - Overall length: 65 mm
• - Pipe schedule compatibility: Schedule 40
• - Does not include pre-applied thread sealant or seals
• - Low lead compliant for potable water use

• Ship Pack Height: 1.5
• Ship Pack Length: 2.7
• Ship Pack Width: 2.7
