1-1/4 in 304 Stainless Steel Square Head Plug, MNPT, Class 150, 300 psi Max Pressure
1-1/4 in 304 Stainless Steel Square Head Plug, MNPT, Class 150, 300 psi Max Pressure
Shipping calculated at checkout

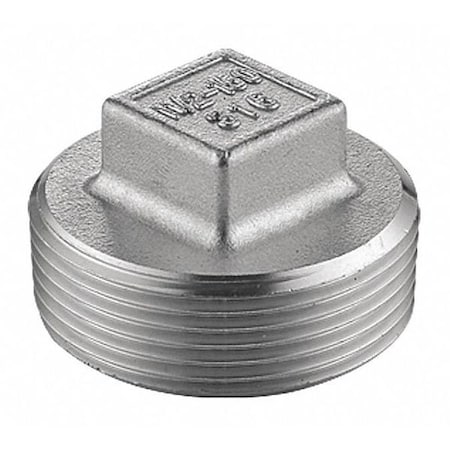

The ZORO SELECT - 40SQ112N114 is a stainless steel square head plug intended to close the end of a threaded pipe, coupling, or fitting. It features a square-shaped head that provides a flat wrenching surface for installation and removal. It is rated for Class 150 pressure and can withstand a maximum operating pressure of 300 psi within a temperature range of -20 Degrees to 350 Degrees F.
Key Features:
- - Material: 304 Stainless Steel
- - Fitting Shape: Square Head Plug
- - Pressure Class: Class 150, with maximum operating pressure of 300 psi
- - Connection Type: Male National Pipe Thread (MNPT) with 11 1/2 TPI threading
- - Nominal Pipe Size: 1 1/4 inches
- - Plug Drive Style: 2 inch square head for wrench engagement
- - Overall Length: 39 mm
- - Temperature Range: -20 Degrees to 350 Degrees Fahrenheit
- - Standards: Material conforms to ASTM-A-351, threads conform to ASME B1.20.1, meets MSS-SP-114 for Class 150 pressure ratings
- - No pre-applied thread sealant or included seal
- - Not magnetic
- Ship Pack Height: 1.5
- Ship Pack Length: 1.7
- Ship Pack Width: 1.7
