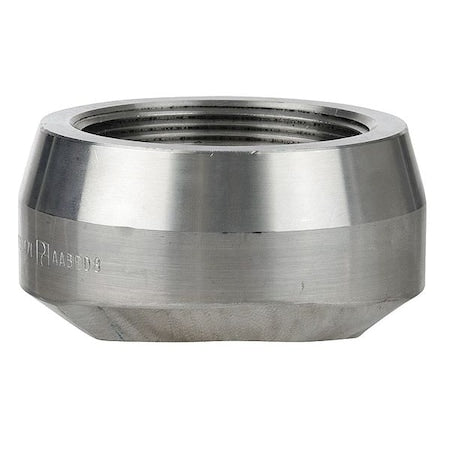

Threaded Outlet, 316 Stainless Steel, 1/4 in FNPT x 3/8 in Socket, Class 3000
Threaded Outlet, 316 Stainless Steel, 1/4 in FNPT x 3/8 in Socket, Class 3000
Shipping calculated at checkout
The ZORO SELECT - 4307003600 is a stainless steel threaded outlet pipe fitting made from 316 stainless steel. It features a female NPT connection with a 1/4 in nominal pipe size on Side A and a female socket connection with a 3/8 in nominal pipe size on Side B. Classified as Class 3000, this fitting provides a pressure-tight branch connection for attaching pipes, valves, gauges, instruments, or plugs without welding, in accordance with MSS SP-97 Class 3000 specifications. It has a maximum pressure rating of 3000 psi and a maximum steam pressure rating of 2810 psi at 350 °F, conforming to MSS SP-97 standards. Key Features:
- - Material: 316 Stainless Steel.
- - Connection types: Female NPT on Side A (1/4 in), Female Socket on Side B (3/8 in).
- - Pressure Class: Class 3000, rated for up to 3000 psi.
- - Maximum Steam Pressure: 2810 psi @ 350 °F.
- - Fitting shape: Outlet, specifically a threaded outlet for screw-type branch connection.
- - Color: Silver.
- - No pre-applied thread sealant or included seal.
