3" Carbon Steel Wafer Check Valve
$444.99
Sale price
$444.99
Regular price
Shipping calculated at checkout

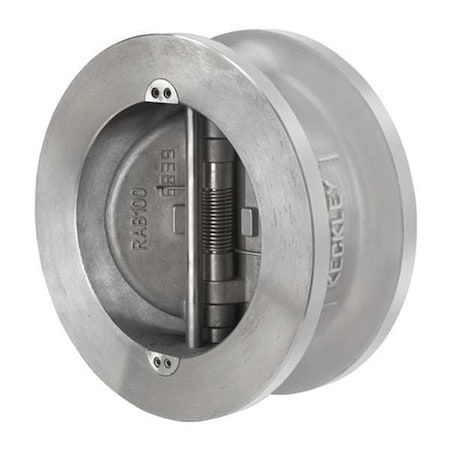

The KECKLEY DD2R-CS-361IX-300 is a 3 in. carbon steel wafer check valve with a double disc check mechanism for use in one-way flow applications in process piping systems. Rated for gas and liquid service, it installs inline between wafer-style flanged connections. Mounting positions: horizontal or vertical. The valve has a cracking pressure of 1.046 psi, a flow rating of 170 gpm, and a Cv of 170.
Key Features:
- Body material: Carbon steel.
- Check mechanism: Double disc with inline wafer body design.
- Connection size: 3 in. x 3 in.
- Connection type: Flanged wafer x flanged wafer.
- Check mechanism material: 316 stainless steel.
- Seal and seat material: Buna-N.
- Spring material: Inconel X-750.
- Flow rating: 170 gpm.
- Cv: 170.
- Cracking pressure: 1.046 psi.
- Maximum water pressure: 285 psi at 100 degrees F.
- Maximum operating pressure: 275 psi.
- Operating temperature range: -20 degrees F to 250 degrees F.
- Standards: Meets multiple ASME, API, and MSS standards.
- Overall length: 2.88 in.; width: 5 3/8 in.
- Ship Pack Height: 3.2
- Ship Pack Length: 6.1
- Ship Pack Width: 6
