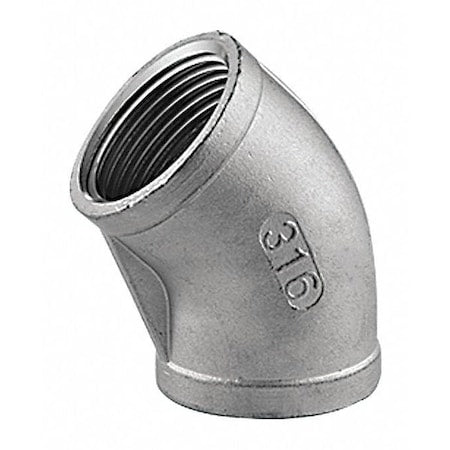

3/4 in FNPT 316 Stainless Steel 45 Degree Elbow, Class 150, Female x Female

The ZORO SELECT - 604E111N034 is a stainless steel pipe fitting in the form of a 45 degree elbow. It is rated for redirecting flow at a 45° angle and is rated for use with air, natural gas, non-potable water, oil, potable water, and steam within specified parameters. Made from 316 stainless steel, which provides corrosion resistance and durability, it is supplied with threaded connection types for compatibility with matching pipe or fittings. The elbow conforms to ANSI B1.20.1 standards with a Class 150 pressure rating, suitable for system pressures up to 300 psi and steam pressures up to 150 psi.

Key Features:

• - Fitting material: metal (stainless steel, 316 grade)
• - Fitting shape: 45-degree elbow
• - Rated for: Class 150 pressure specifications
• - Fitting connection type: female national pipe thread (NPT)
• - Fitting ends: female threaded connections
• - Fitting size: 3/4 inch nominal pipe size
• - Outside diameter: 3/4 inch
• - Pipe thread size: 14 (NPT)
• - Thread type: NPT (National Pipe Thread)
• - Fittings sub-category: elbows
• - Item: 45 Degree Elbow, with a gentle flow change and threaded connections for versatile piping applications
• - Meets low lead content regulations
• - Material grade: 316
• - Maximum rated pressure: 300 psi
• - Maximum steam pressure: 150 psi
• - Rated for maximum operating pressure: 300 psi
• - Pipe fitting material: 316 stainless steel
• - Pipe fitting schedule/class: Class 150
• - Pipe size: 3/4"
• - Standards: conforms to ANSI B1.20.1 standards with a Class 150 pressure rating

• Ship Pack Height: 2.3
• Ship Pack Length: 1.4
• Ship Pack Width: 1.4
