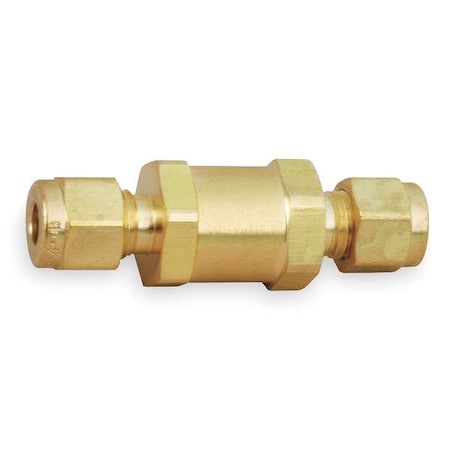

PARKER 4A-C4L-10-BN-B is a 1/4 in A-LOK brass instrumentation check valve designed for one-way flow control in fluid and gas lines. This inline poppet valve features compression x compression connections and a 10 psi cracking pressure for one-way flow control in instrumentation and process systems. It can be mounted horizontally or vertically and has an operating temperature range of -30 Degrees F to 275 Degrees F.
Key Features:
- Brass body construction for instrumentation check valve service
- 1/4 in compression x compression A-LOK connections on both sides
- Inline poppet design with single flow path
- Cracking pressure: 10 psi
- Flow coefficient: Cv 0.75
- Maximum operating pressure: 3,000 psi
- Maximum water pressure: 3,000 psi CWP / 3,000 psi @ 100 Degrees F
- Seal material: Buna-N/Nitrile
- Seat material: FKM, Nitrile
- Spring material: 316 stainless steel
- Mounting orientation: horizontal or vertical
- Overall length: 2.42 in
- Hex size: 3/4 in
- Standards: ASTM B16
- Ship Pack Height: 4.6
- Ship Pack Length: 1.6
- Ship Pack Width: 1.5
