Hydraulic Punch and Die Set, SP Series, 35 Ton, Single-Acting Spring Return, 1/4 to 3/4 in
Hydraulic Punch and Die Set, SP Series, 35 Ton, Single-Acting Spring Return, 1/4 to 3/4 in
Shipping calculated at checkout

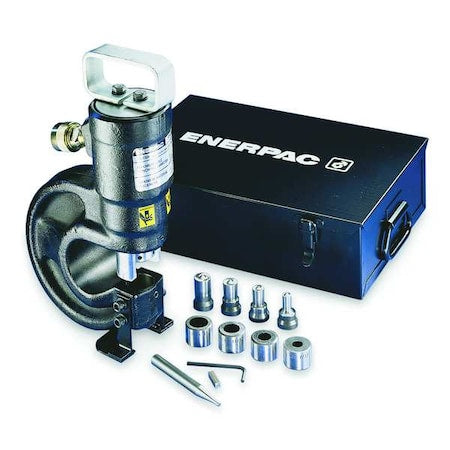

The ENERPAC SP35S is a 35-ton hydraulic punch and standard die set intended for punching. It is a single-acting tool with a spring-return cylinder (Series SP) and operates at a working pressure of 10,000 psi. The set includes a CR400 coupler and a standard die set, produces circular holes from 0.31 to 0.81 in, and accommodates standard bolt sizes from 1/4 in to 3/4 in. Other recorded attributes include an oil capacity of 4.58 cu in, a width of 3.85 in, and a Mild A-7 value of 0.5. This item is not eligible for promotion.
Key Features:
- - Item: Hydraulic punch and die set (SP35S, Series SP)
- - Capacity: 35 ton
- - Application: Punching
- - Cylinder / Return: Single-acting, spring return
- - Working pressure: 10,000 psi
- - Hole shape: Circle
- - Hole size: 0.31 to 0.81 in
- - Standard bolt sizes: 1/4 in, 5/16 in, 3/8 in, 7/16 in, 1/2 in, 5/8 in, 3/4 in
- - Includes: CR400 Coupler, Die Set
- - Oil capacity: 4.58 cu in
- - Width: 3.85 in
- - Mild A-7: 0.5
- - Promotion restriction: Not eligible for promotion
- Ship Pack Height: 16.1
- Ship Pack Length: 11.3
- Ship Pack Width: 4.6
