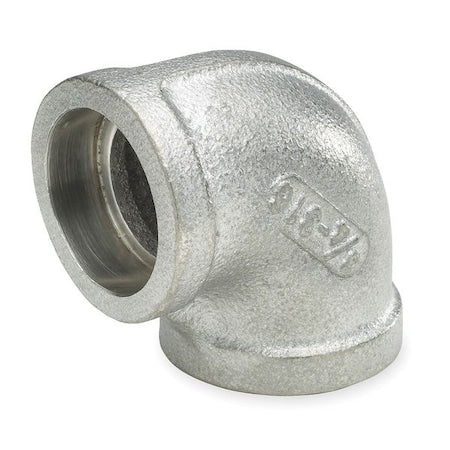

1 in Socket Weld Stainless Steel 90° Elbow, Class 3000, 304L, Schedule 80
1 in Socket Weld Stainless Steel 90° Elbow, Class 3000, 304L, Schedule 80
Shipping calculated at checkout
The ZORO SELECT - 4307004312 is a 90 Degree Elbow stainless steel pipe fitting designed to connect two pipes at a right angle (90°) to change the flow direction. It features socket weld connections on both ends with female gender fittings, each sized for 1-inch nominal pipe. Manufactured from 304 stainless steel, this elbow is pressure rated to Class 3000, supporting a maximum internal pressure of 2,570 psi at 100 degrees Fahrenheit and a maximum steam pressure of 1,965 psi at 350 degrees Fahrenheit. It complies with standards ISO 9001:2008, ASTM A182, and ASME B16.11. Key Features:
- - Material: 304 Stainless Steel
- - Shape: 90 Degree Elbow for changing flow direction
- - Connection Type: Socket weld with female gender on both ends
- - Nominal Pipe Size: 1 inch for both ends
- - Pressure Rating: Class 3000
- - Maximum Pressure: 2,570 psi @ 100°F
- - Maximum Steam Pressure: 1,965 psi @ 350°F
- - Standards: ISO 9001:2008; ASTM A182; ASME B16.11
- - Outside Diameter (approx.): 1 11/16 inches at connection
- - Overall Length: 2 3/4 inches
- - Color: Silver
- - Does not include pre-applied thread sealant or seal
