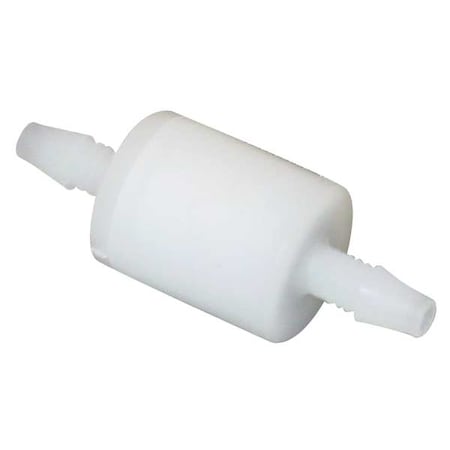

1/8" Barb Polypropylene Ball Cone Spring Check Valve
$6.92
Sale price
$6.92
Regular price
Skip to product information
Request for Tax Exemption
Request a Quote
1/8" Barb Polypropylene Ball Cone Spring Check Valve
$6.92
Sale price
$6.92
Regular price
Shipping calculated at checkout
ZORO SELECT Series 695 check valve is an inline ball cone spring check valve intended for one-way flow applications in general-purpose air and fluid systems. This polypropylene valve uses a spring-loaded ball mechanism that opens at 1 psi cracking pressure and uses a spring-loaded ball mechanism for check-valve applications where flow may stop or reverse. Its inline body measures 1.38 in overall length and 1/2 in overall height and width, with barb x barb connections for 1/8 in pipe or tube size installations and horizontal or vertical mounting options.
Key Features:
- Valve type: Inline ball cone spring check valve.
- Body material: Polypropylene.
- Seat material: Polypropylene.
- Connection style: 1/8 in barb x barb ends for 1/8 in pipe or tube size.
- Check mechanism: Ball with stainless steel check mechanism and stainless steel spring.
- Seal material: Buna-N.
- Maximum operating pressure: 125 psi.
- Temperature range: -20 Degrees F to 140 Degrees F.
- Cracking pressure: 1 psi.
- Flow capacity: Cv 0.2.
- Mounting orientation: Horizontal or vertical.
- Dimensions: 1.38 in overall length; 1/2 in overall height and width.
- Ship Pack Height: 0.5
- Ship Pack Length: 6
- Ship Pack Width: 1
