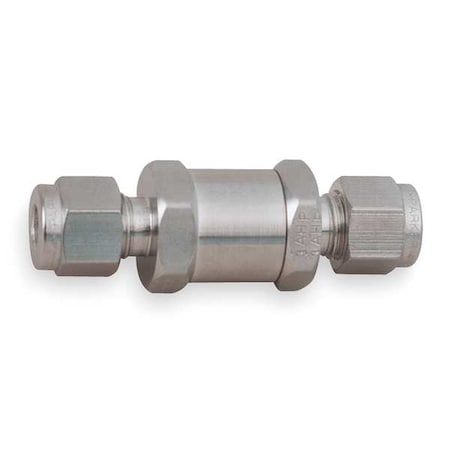

The PARKER 4A-C4L-10-SS is a 1/4 in instrumentation check valve with an inline poppet design for one-way flow control in small-bore fluid and gas lines. It is intended for applications requiring reverse-flow restriction in instrument and process systems and features 316 stainless steel construction for use with compatible media, along with compression x compression A-LOK(R) connections for tubing installations.
Key Features:
- Instrumentation check valve with single-flow inline poppet design.
- 1/4 in compression x compression connections; A-LOK(R) connection style.
- 316 stainless steel body and 316 stainless steel spring.
- For compatible fluids and gases; application category: corrosive media.
- 10 psi cracking pressure.
- Cv: 0.75; flow rating: 0.75 gpm.
- Maximum operating pressure: 6,000 psi; max water pressure: 6000 psi at 100 Degrees F / 6000 psi CWP.
- Operating temperature range: -15 Degrees F to 400 Degrees F.
- Seal material: FKM; seat material: FKM.
- Mounting orientation: horizontal or vertical.
- Nominal valve size: 1/4 in; overall length: 2.42 in.
- Standards: ASTM A 276.
- Ship Pack Height: 4.6
- Ship Pack Length: 1.5
- Ship Pack Width: 1.6
