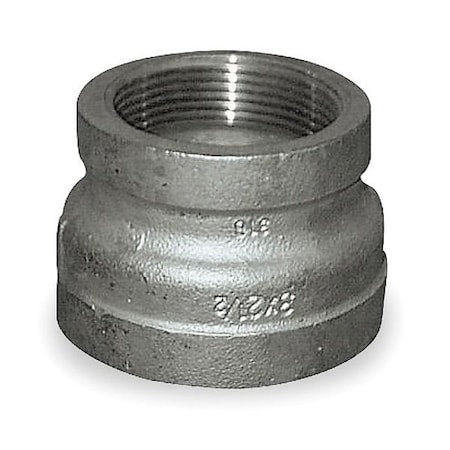

StainlessSteel,Straight,1/2"NPTx3/8"NPT

The ZORO SELECT - 4307001714 is a 316 stainless steel reducing coupling designed to join two pipes of different diameters, providing a compact transition between sizes in a piping system. This fitting features female NPT threaded connections in nominal sizes 1/2" and 3/8". It is rated for up to 3,000 psi at 100°F and steam pressures up to 2,810 psi at 350°F. The reducing coupling is constructed to meet ASME and ASTM standards for thread and material quality, making it suitable for high-pressure applications requiring corrosion resistance.

Key Features:

• - Material: 316 Stainless Steel
• - Connection Type: Female NPT threaded ends on both sides
• - Nominal Pipe Sizes: 1/2" on Side A x 3/8" on Side B
• - Pressure Rating: Up to 3,000 psi at 100°F
• - Max Steam Pressure: 2,810 psi @ 350°F
• - Overall Length: 1 7/8 inches
• - Outside Diameter (Side A): 1-1/8 inches
• - Standards Compliant: Threads per ASME B1.20.1; Material per ASTM A182; Dimensions per ASME B16.11
• - Does not include pre-applied thread sealant or sealing components

• Ship Pack Height: 1.9
• Ship Pack Length: 1.2
• Ship Pack Width: 1.2
