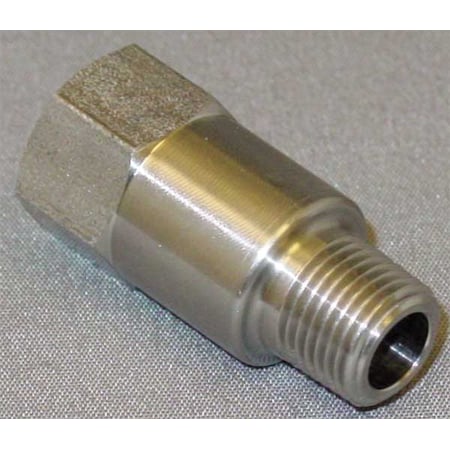

1/8" FNPT x MNPT Stainless Steel Piston Spring Check Valve
$27.80
Sale price
$27.80
Regular price
Shipping calculated at checkout
ZORO SELECT Series 210-2F2M-F is an inline piston spring check valve for compatible air and fluid applications. This 1/8 in valve is configured for one-way flow with a 1 psi cracking pressure. It features a stainless steel body and internal components, a Viton seal, and a stainless steel seat. The valve can be mounted horizontally or vertically.
Key Features:
- Type: Piston spring check valve with inline body design and single-flow path
- Size: 1/8 in nominal valve size with 1/8 in connections on both sides
- Connections: FNPT x MNPT, with female side 1 and male side 2 NPT threads
- Materials: Stainless steel body, piston/check mechanism, seat, and spring
- Seal Material: Viton/FKM
- Pressure Rating: 500 psi maximum operating and water pressure
- Temperature Range: -20 degrees F to 180 degrees F
- Flow Capacity: Cv 0.2
- Mounting Orientation: Horizontal or vertical
- Dimensions: 1.19 in overall length, 0.56 in width, 9/16 in overall height, 9/16 in hex size
- Standards: UL, UR
- Ship Pack Height: 1
- Ship Pack Length: 6
- Ship Pack Width: 1.5
