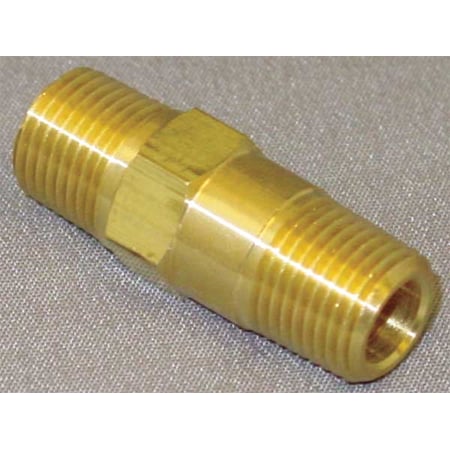

1/8" MNPT Brass Piston Spring Check Valve
$21.86
Sale price
$21.86
Regular price
Shipping calculated at checkout
Zoro Select piston spring check valve with an inline brass body and piston check mechanism. It is configured with a piston spring check mechanism for one-direction flow and backflow control applications. This valve features 1/8 in male NPT x male NPT connections, a 1 psi cracking pressure, and a single full-flow design. It is intended for air and fluid piping systems within the listed pressure and temperature ratings.
Key Features:
- Valve type: Piston spring check valve with inline piston mechanism and inline body style
- Materials: Brass body, brass check mechanism, brass seat, stainless steel spring, and Buna-N seal
- Connections: 1/8 in male NPT x male NPT
- Pressure rating: 500 psi maximum operating pressure; 500 psi maximum water pressure
- Temperature range: -20 degrees F minimum operating temperature to 180 degrees F maximum operating temperature
- Cracking pressure: 1 psi
- Flow design: Single, full flow
- Mounting orientation: Horizontal or vertical
- Dimensions: 1.19 in overall length, 7/16 in overall height, 7/16 in hex size
- Standards: UL, UR
- Ship Pack Height: 1
- Ship Pack Length: 6
- Ship Pack Width: 1
