Firecycle Multi Cycle Detector Model B Heat Detection
$2,557.99
Sale price
$2,557.99
Regular price
$3,925.99
Shipping calculated at checkout

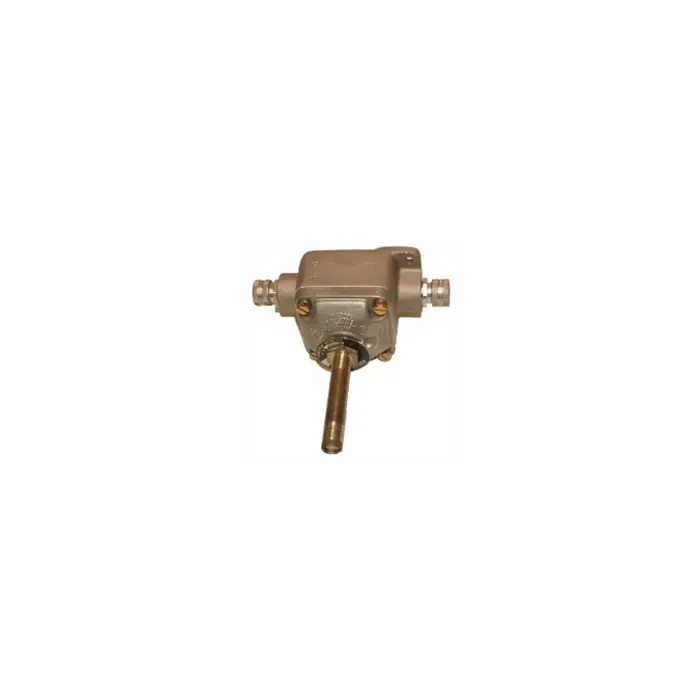

The Viking Firecycle® Multi-Cycle Detector Model B is a precision-engineered electrical heat detection device utilized in specialized commercial and industrial fire suppression and alarm assemblies. It installs as part of a series-wired detection network communicating directly with Viking Firecycle® Multi-Cycle Control Panels, functioning as a normally closed electrical switch. When exposed to elevated temperatures, the unit provides reliable actuation to trigger system response and enhance fire alarm responsiveness in critical environments.
This component complies with National Fire Protection Association (NFPA) standards governing fire detection systems. It satisfies strict code requirements for rate-compensating heat sensing and automatic recycling operations, ensuring the system maintains accuracy under fluctuating ambient conditions and resets automatically without manual intervention after an event.
- Rugged Metal Construction: Housed in a heavy-duty metal casing designed to withstand demanding commercial and industrial installation environments.
- Rate-Compensating Technology: Maintains precise activation accuracy under varying ambient temperature conditions to minimize false alarms.
- Automatic Reset: Automatically recycles and resets after activation without requiring manual component replacement or intervention, maximizing system uptime.
- System Integration: Operates as a normally closed electrical device designed for exclusive compatibility with Viking Firecycle® Multi-Cycle Control Panels and fire-resistant detector cables wired in series.
- Fixed Temperature Activation: Activates reliably at predetermined temperature thresholds (available in 140°F, 160°F, and 190°F ratings) for early fire detection.
| Technical Parameter | Specification |
|---|---|
| Manufacturer / Brand | Viking |
| Model / Series Number / SIN | Firecycle Multi Cycle Detector Model B (FC3) |
| Connection / Thread Size & Type | N/A |
| Pressure Rating (WWP / Max Working Pressure) | N/A |
| K-Factor | N/A |
| Temperature Rating / Response Type | 140F, 160F, 190F / Rate Compensated & Fixed Temperature |
| Material / Body Construction | Rugged Metal Casing |
| Agency Listings & Approvals | UL Listed, FM Approved |
| Applicable NFPA Standards | NFPA Compliant Fire Detection Systems |
Contractors and facility managers must verify all local Authority Having Jurisdiction (AHJ) requirements and consult the manufacturer's technical data sheets before commencing installation or system layout.
Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
