Fig 4B Sway Bracing Pipe Clamp for Secure Support

Fig 4B Sway Bracing Pipe Clamp for Secure Support

1-1/2 in.
$62.99
$62.99 $95.99
Skip to product information
Fig 4B Sway Bracing Pipe Clamp for Secure Support
  • Fig 4B Sway Bracing Pipe Clamp for Secure Support
  • Fig 4B Sway Bracing Pipe Clamp for Secure Support
  • Fig 4B Sway Bracing Pipe Clamp for Secure Support
  • Fig 4B Sway Bracing Pipe Clamp for Secure Support
  • Fig 4B Sway Bracing Pipe Clamp for Secure Support
  • Fig 4B Sway Bracing Pipe Clamp for Secure Support
  • Fig 4B Sway Bracing Pipe Clamp for Secure Support
  • Fig 4B Sway Bracing Pipe Clamp for Secure Support
  • Fig 4B Sway Bracing Pipe Clamp for Secure Support
  • Fig 4B Sway Bracing Pipe Clamp for Secure Support
Fig 4B Sway Bracing Pipe Clamp for Secure Support

Fig 4B Sway Bracing Pipe Clamp for Secure Support

$62.99
$62.99 $95.99

Shipping calculated at checkout

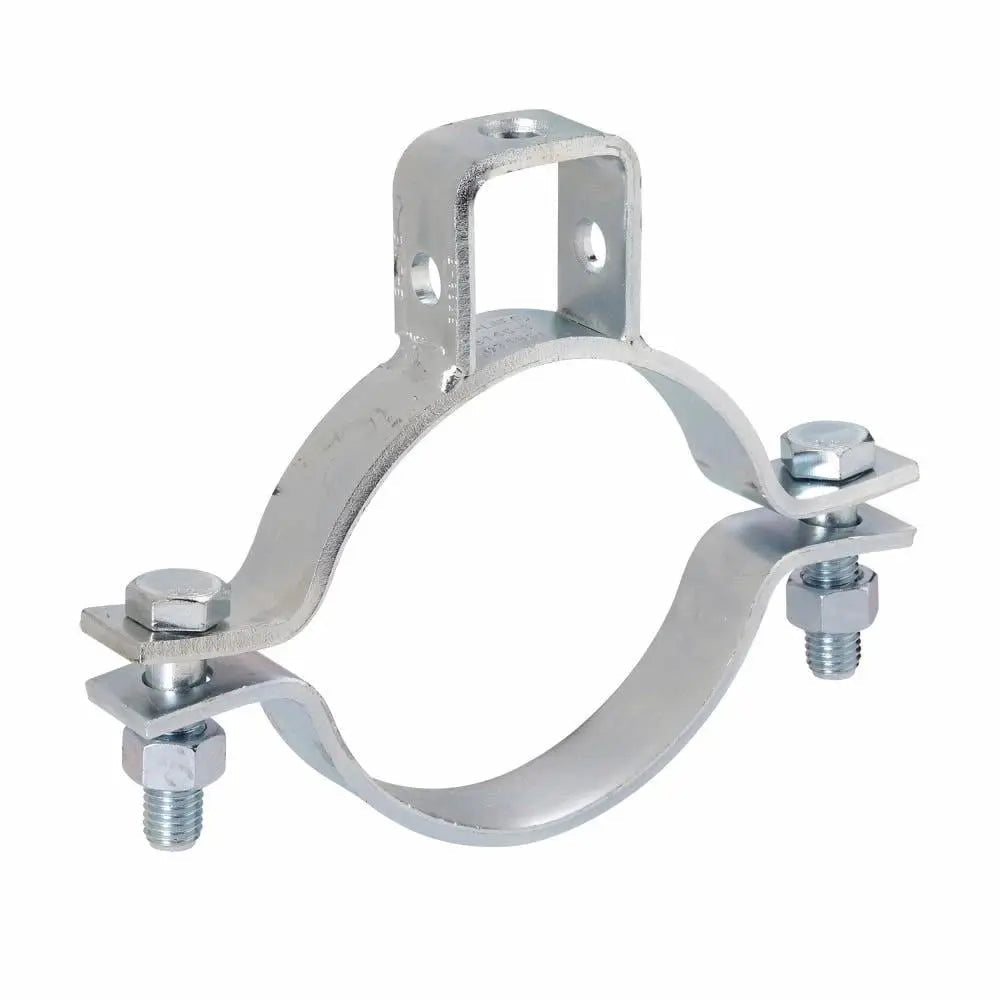

The Fig 4B Sway Bracing Pipe Clamp delivers reliable lateral support and sway bracing for commercial and industrial fire sprinkler piping systems. Installed within fire suppression assemblies to prevent lateral displacement and reduce pipe stress during seismic events, this heavy-duty component protects critical infrastructure from earthquake-induced damage.

Designed in compliance with NFPA 13 guidelines, the clamp satisfies essential life safety and structural code requirements for seismic zones. Its engineered configuration ensures secure attachment across multiple pipe types, maintaining system integrity under demanding field conditions.

Key Features & Construction

  • Ductile Iron Build: Crafted from high-grade ductile iron to deliver exceptional strength and corrosion resistance in harsh environments.
  • Built-In Mounting Bracket: Features an integrated bracket engineered specifically for straightforward sway bracing and lateral displacement prevention.
  • Fast Attachment Mechanism: Utilizes a secure bolt-and-nut setup for a quick, firm mount that reduces installation time on the job site.
  • Material Compatibility: Accommodates various commercial piping configurations, including steel and CPVC systems.

Technical Specifications & Compliance

Manufacturer / Brand Tolco (Eaton B-Line)
Model / Series Number / SIN Fig 4B
Connection / Thread Size & Type N/A
Pressure Rating (WWP / Max Working Pressure) N/A
K-Factor N/A
Temperature Rating / Response Type N/A
Material / Body Construction Ductile Iron
Agency Listings & Approvals UL Listed, FM Approved
Applicable NFPA Standards NFPA 13

Contractors must verify local Authority Having Jurisdiction (AHJ) requirements and consult manufacturer technical documentation prior to beginning installation.

Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
