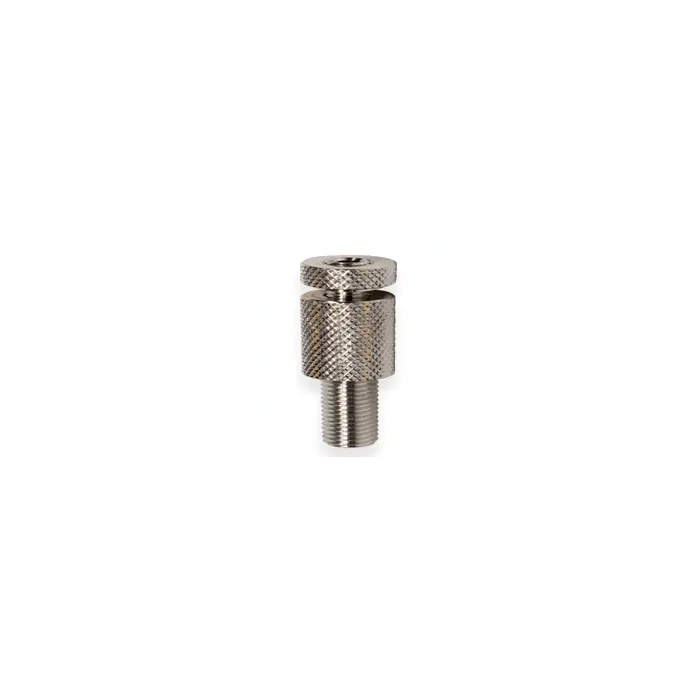

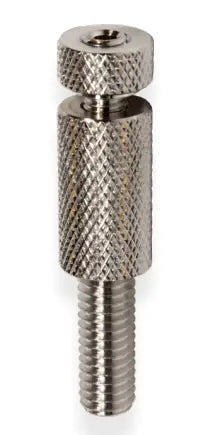

C220 Stud End Clutch for C100 Series

The ASC C220 Stud End Clutch functions as an essential structural fastener within fire protection networks, HVAC support networks, and building infrastructure assemblies. Designed specifically to integrate into the C100 Series cable assembly system, this clutch component provides a reliable mechanical termination point for suspending equipment, piping, and cable runs securely from overhead structures. The component operates by gripping and locking onto compatible cable assemblies, translating a dependable hold to threaded anchor points on the job site.

Installation and deployment of this hardware align directly with strict life safety infrastructure guidelines. While specific hanging configurations vary by application, fire suppression and support installations utilizing this hardware typically fall under the design parameters of NFPA 13 for standard sprinkler installations, NFPA 14 for standpipe systems, and NFPA 20 for stationary fire pumps, ensuring seismic bracing and equipment supports maintain proper code compliance and load integrity during an emergency event.

Key Features & Construction

• Model Series: Engineered specifically for compatibility with the C100 Series cable assembly system.
• Component Type: Stud end clutch designed for secure mechanical cable termination and threaded anchoring.
• Application Use: Deployed across commercial fire protection, HVAC support infrastructure, and specialized building services.
• Durable Build: Manufactured to withstand rigorous commercial and industrial job site installation conditions.

Technical Specifications & Compliance Table
