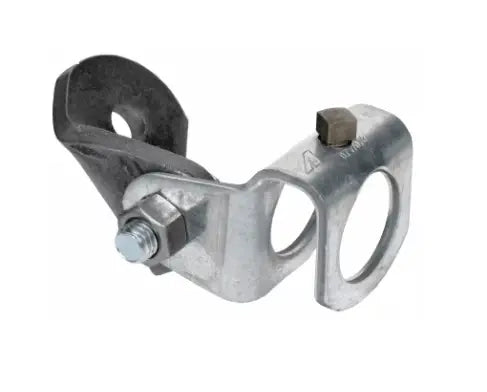

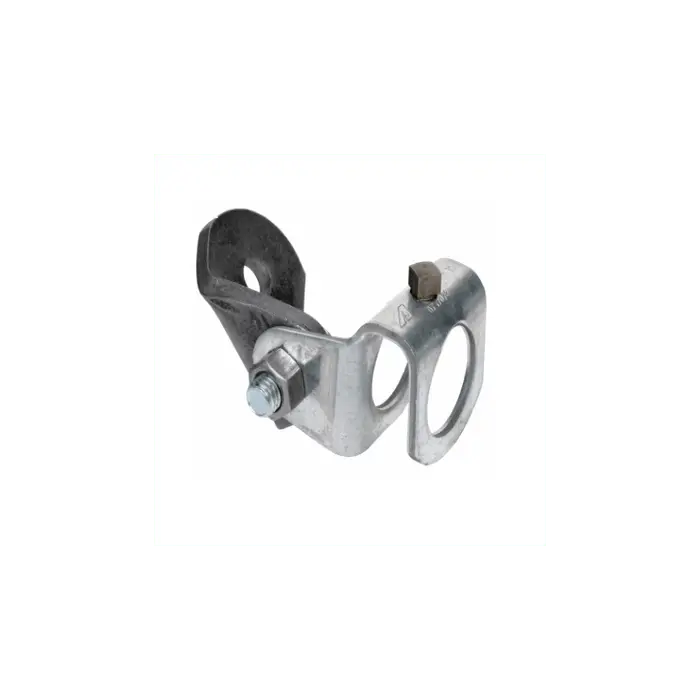

Af077 Locking Sway Brace Swivel Attachment for Piping
$25.99
Sale price
$25.99
Regular price
$39.99
Shipping calculated at checkout
Secure your industrial piping and fire protection brace networks against seismic activity and lateral movement with the ASC Engineered Solutions AF077 Locking Sway Brace Swivel Attachment. This component installs directly into fire sprinkler and mechanical piping brace assemblies to provide reliable structural support and maintain critical alignment during seismic events.
Engineered to satisfy stringent life-safety demands, sway brace assemblies utilizing components like the AF077 are designed and installed in strict accordance with NFPA 13 requirements for lateral and longitudinal seismic bracing. Proper installation ensures compliance with building codes mandating that fire protection and essential industrial piping systems withstand dynamic seismic forces without structural failure.
Key Features & Construction
- Locking Swivel Mechanism: Streamlines installation angles and holds your required orientation firmly in place during setup.
- Seismic Stabilization: Braces industrial and fire protection piping against sway and lateral forces to preserve system integrity.
- Efficient Overhead Layouts: Simplifies complex overhead plumbing and mechanical positioning to help crews complete installations quickly.
- Durable Hardware Design: Built to withstand demanding mechanical loads and harsh job site conditions.
Technical Specifications & Compliance Table
| Manufacturer / Brand | ASC Engineered Solutions |
|---|---|
| Model / Series Number / SIN | AF077 |
| Connection / Thread Size & Type | 1-1/4" (Electro-Galvanized variant available per SKU) |
| Pressure Rating (WWP / Max Working Pressure) | N/A |
| K-Factor | N/A |
| Temperature Rating / Response Type | N/A |
| Material / Body Construction | N/A |
| Agency Listings & Approvals | N/A |
| Applicable NFPA Standards | NFPA 13 |
Contractors must verify local Authority Having Jurisdiction (AHJ) seismic design requirements and consult the manufacturer's technical data sheets and installation instructions prior to assembly and anchoring.
Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
