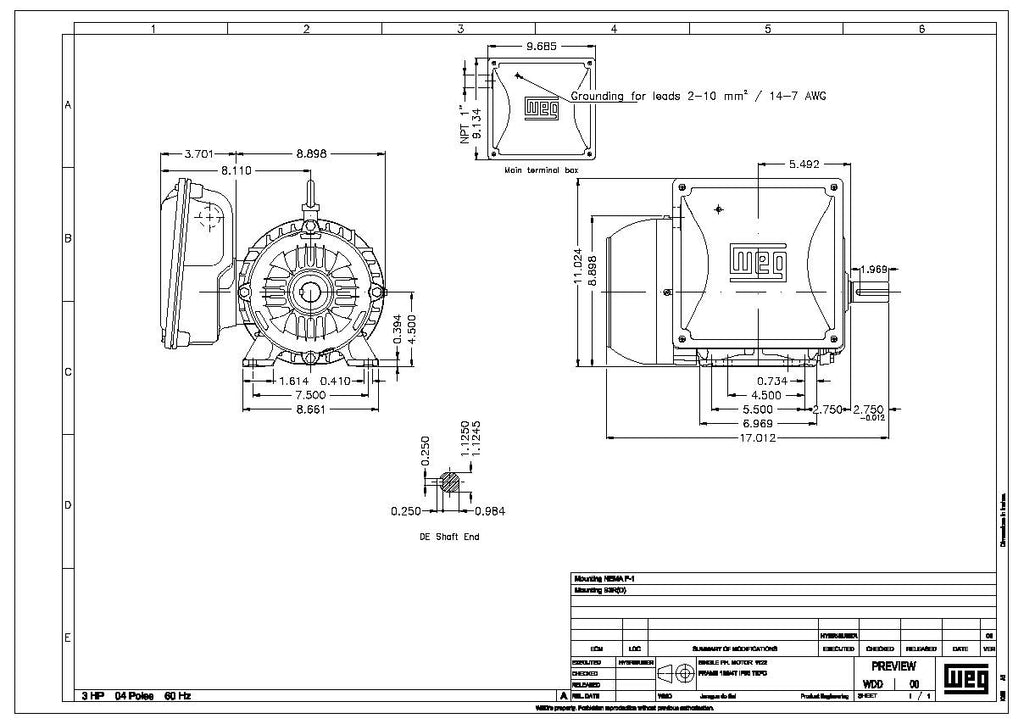

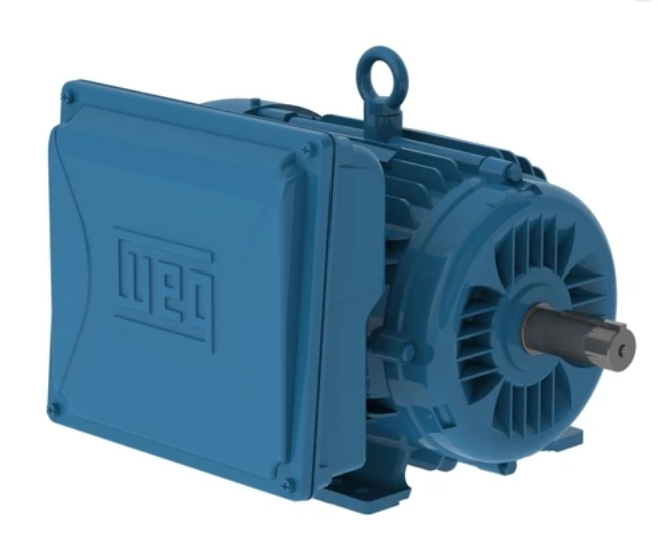

WEG 00318ES1E184T-W22 3 HP 4P 182/4T 1Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted Electric Motor
$570.00
Precio de oferta
$570.00
Precio habitual
$690.00
Ir directamente a la información del producto
Request for Tax Exemption
Request a Quote
WEG 00318ES1E184T-W22 3 HP 4P 182/4T 1Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted Electric Motor
$570.00
Precio de oferta
$570.00
Precio habitual
$690.00
Shipping calculated at checkout
WEG 00318ES1E184T-W22 3 HP 4P 182/4T 1Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted Electric Motor
High starting torque
Suitable for domestic and rural power supply conditions
Adaptable design suitable for a variety of applications and needs
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 208-230/460 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 3 HP |
|---|---|
| Mounting | Foot-mounted |
| Flange | Without |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
| Frame | 182/4T |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1745 rpm |
| Slip | 3.06 % |
| Rated voltage | 208-230/460 V |
| Rated current | 14.5-13.8/6.90 A |
| L. R. Amperes | 112-106/53.1 A |
| LRC | 7.7x(Code K) |
| No load current | 5.78-6.70/3.35 A |
| Rated torque | 9.03 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 270 % |
| Locked rotor time | 14s (cold) 8s (hot) |
| Moment of inertia (J) | 0.3735 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 106 lb |
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 65.0 | 74.0 | 77.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.79 | 0.87 | 0.90 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C3) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Fan material | Plastic |
| Screw cap | CARBON STEEL SAE 1010/20 |
| NDE bearing Seal | V'Ring |
| Cable Press Material | Sem |
| DE bearing Seal | V'Ring |
