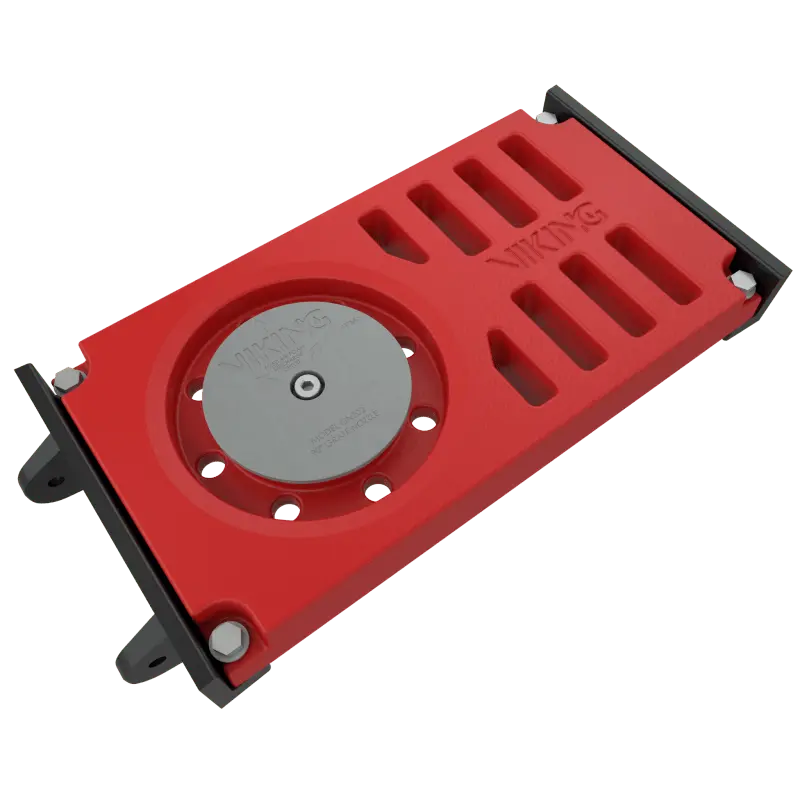

Viking Grate Nozzle Assembly & Detector FC for Fire Safety

Overview

You can protect critical industrial floors and stop flammable liquid fires right at ground level with the Viking Grate Nozzle Assembly and Detector FC. This assembly delivers an Aqueous Film Forming Foam solution straight to the source in areas like aircraft hangars and helipads. It mounts flush inside trench drainage systems to save floor space while targeting fuel spills faster than traditional overhead deluge systems.

The Detector FC senses heat quickly to trigger rapid suppression when emergencies happen. You get reliable fire hazard prevention that safeguards both your property and your crew in heavy-duty commercial spaces.

Key Features & Construction

• Targeted Suppression: Delivers AFFF foam solution right at the floor to stop flammable liquid fires faster than overhead setups.
• Flush Fit Design: Sits level inside trench drains so you keep valuable floor space clear and integrated with drainage.
• Heavy-Duty Build: Uses 316L stainless steel for the nozzle and ductile iron for the grate and X-frame supports to handle airplane loads parked right on top.
• Flexible Spray Options: Available in 90, 180, and 360-degree patterns with 20-inch, 26-inch, and 555mm widths to fit your specific trench layout.
• Quick Heat Sensing: Features a 16-inch Detector FC with temperature options of 140°F, 160°F, 190°F, and 225°F.
• Easy Installation: Connects simply using a 2-inch grooved inlet for straightforward setup and removal.

Technical Specifications & Compliance Table

Submittal & Installation Note

You must verify all local Authority Having Jurisdiction requirements and consult the manufacturer technical data sheets before beginning installation.

Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
