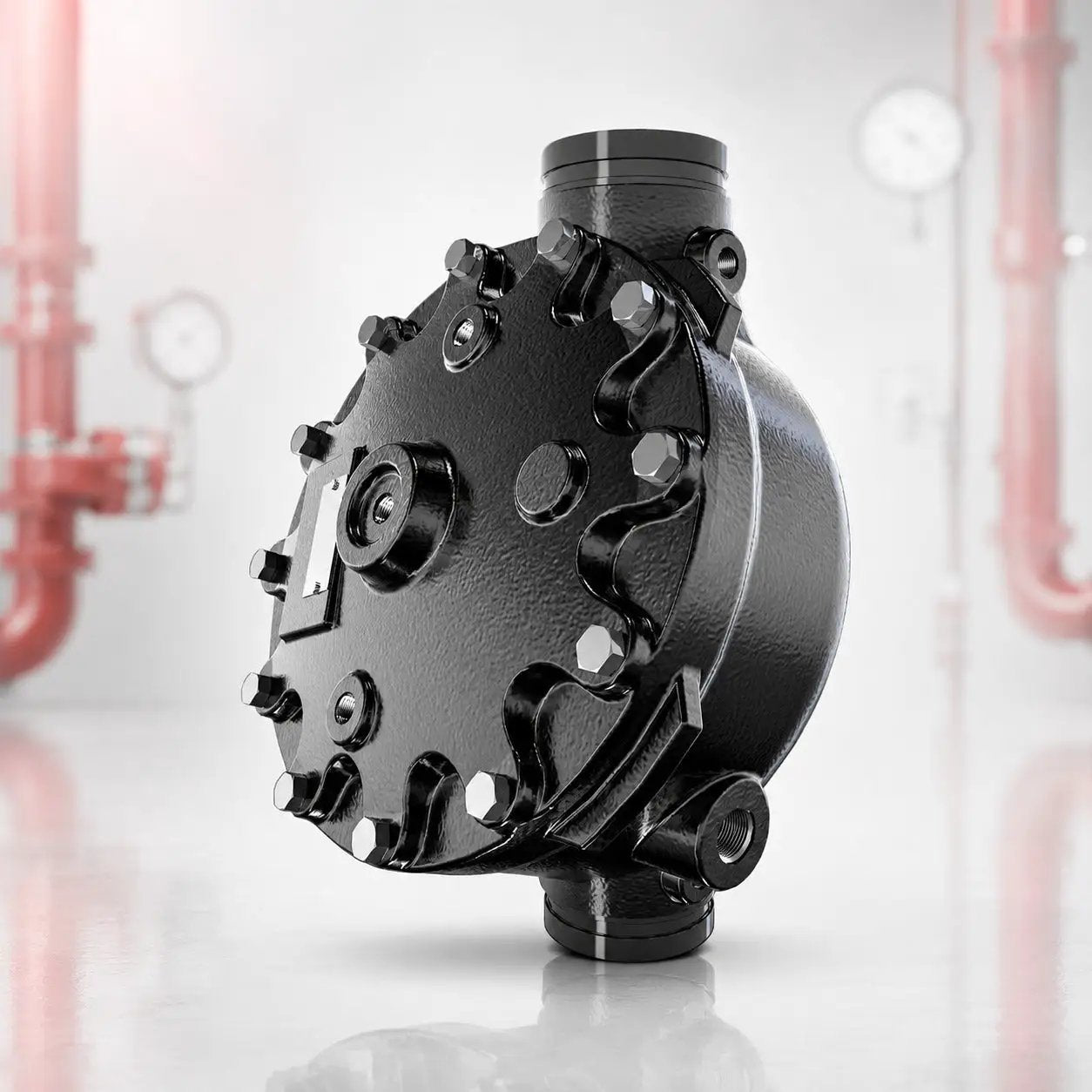

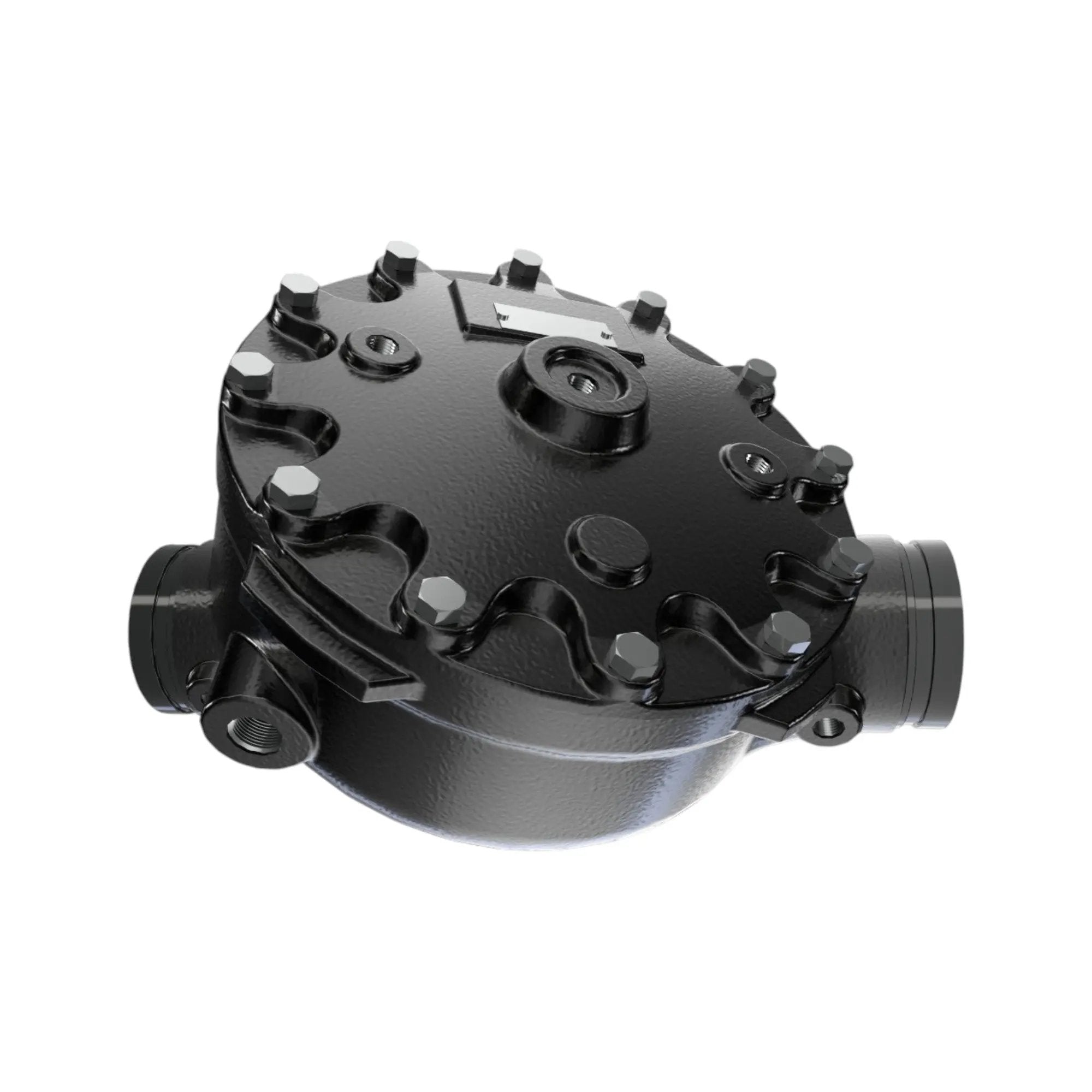

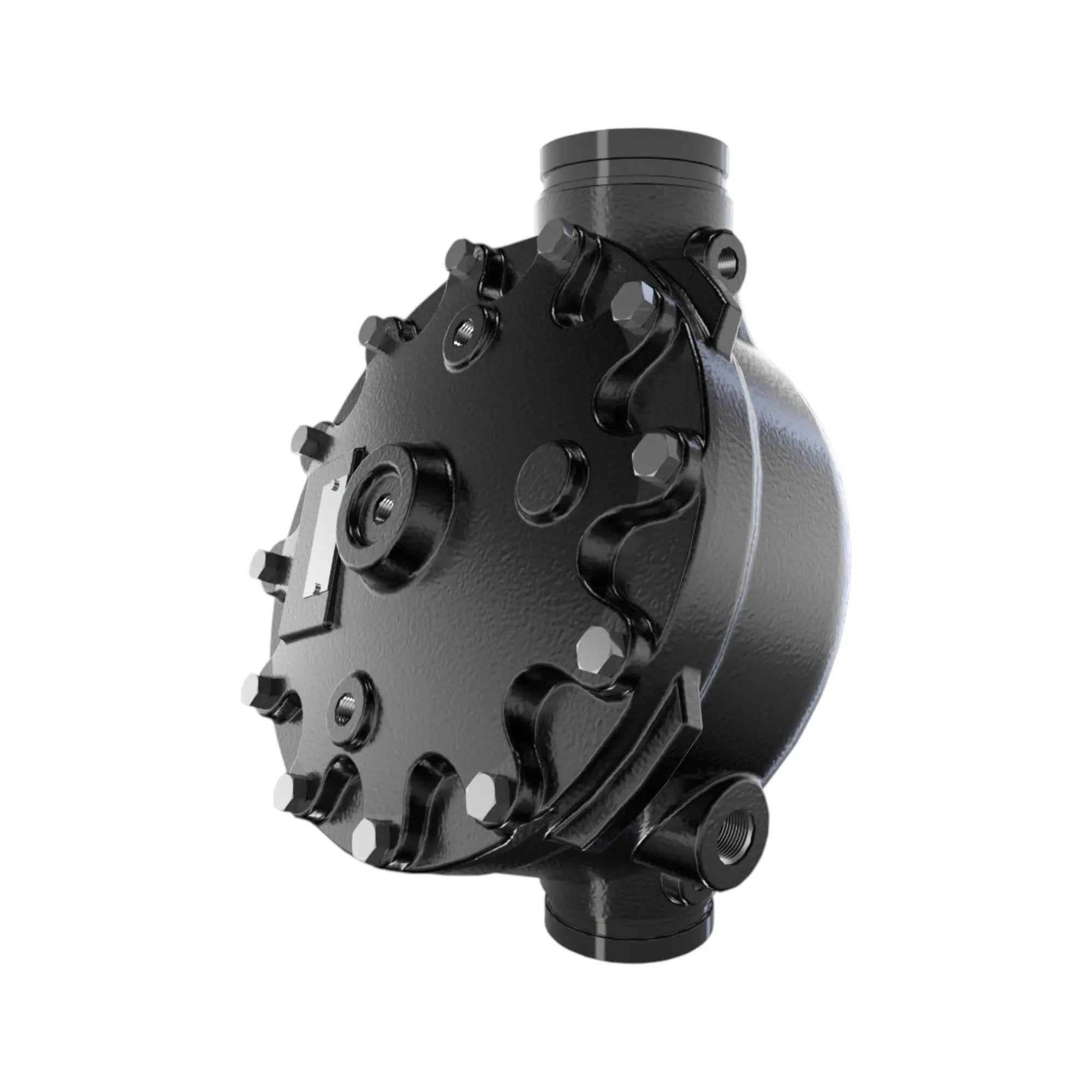

Viking F-1 Deluge Valve: Essential Fire Control for High-Hazard Environments

The Viking Model F-1 Deluge Valve is a precision-engineered solution for industrial, commercial, and institutional fire suppression systems that demand robust and reliable water flow control. This quick-opening, differential diaphragm valve serves as the primary control mechanism for deluge, preaction, and special hazard systems. Whether protecting high-tech data centers, expansive warehouses, or hazardous chemical plants, this valve ensures prompt, decisive activation when rapid fire response is paramount. Deluge systems are essential in environments where fire can spread rapidly, such as in facilities with flammable liquids or gases, and are designed to quickly apply large volumes of water over a wide area.

• Durable Construction & Advanced Coatings: Crafted from high-grade ductile iron, the Viking F-1 is built for long-lasting performance. Selected models feature a specialized Halar® ECTFE coating inside and out, providing exceptional resistance to corrosive chemicals, acids, solvents, and salt water, outperforming standard epoxy coatings in aggressive environments. This coating is known for its excellent chemical, fire, and permeation resistance, even at elevated temperatures.
• Reliable Differential Design: Featuring a single moving mechanism and a diaphragm-style flood valve, this component ensures instant water release upon activation. This streamlined configuration simplifies maintenance and allows for consistent flow regulation during emergency conditions. The valve is held closed by system water pressure trapped in a priming chamber, and when this pressure is released by a detection system, the valve opens.
• Optimized Flow & Pressure Management: Precision-engineered to minimize pressure loss while maximizing water flow, these valves are rated for a maximum working water pressure of 250 PSI (17.4 bar) and factory tested to 500 PSI (34.5 bar).
• Versatile Installation & Connectivity: Designed for dependable operation in both horizontal and vertical positions, these valves accommodate various piping architectures with flexible connection configurations, including flange and groove combinations.
• System Compatibility: Fully compatible with hydraulic, pneumatic, and electric release systems. These valves are also evaluated for use as foam concentrate control valves with AFFF or ATC foam in fixed foam/water sprinkler systems.
• Certified Performance: All Viking F-1 deluge valves hold UL Listing and FM Approval, demonstrating adherence to the most stringent global fire safety standards and compliance with NFPA requirements for deluge and preaction sprinkler systems.

By integrating the trusted Viking F-1 Deluge Valve into your fire protection strategy, you gain the reliable water delivery and rapid activation essential for effective fire suppression. Its robust construction, featuring high-grade ductile iron and optional Halar® ECTFE coating, reduces maintenance frequency and extends service life, safeguarding your most valuable assets and critical infrastructure from fire spread and downtime risks. The quick-opening design and ability to deliver large volumes of water simultaneously help prevent fires from escalating, protecting both personnel and valuable assets.

Specifications: https://www.vikinggroupinc.com/sites/default/files/migrated/110802_0.pdf
