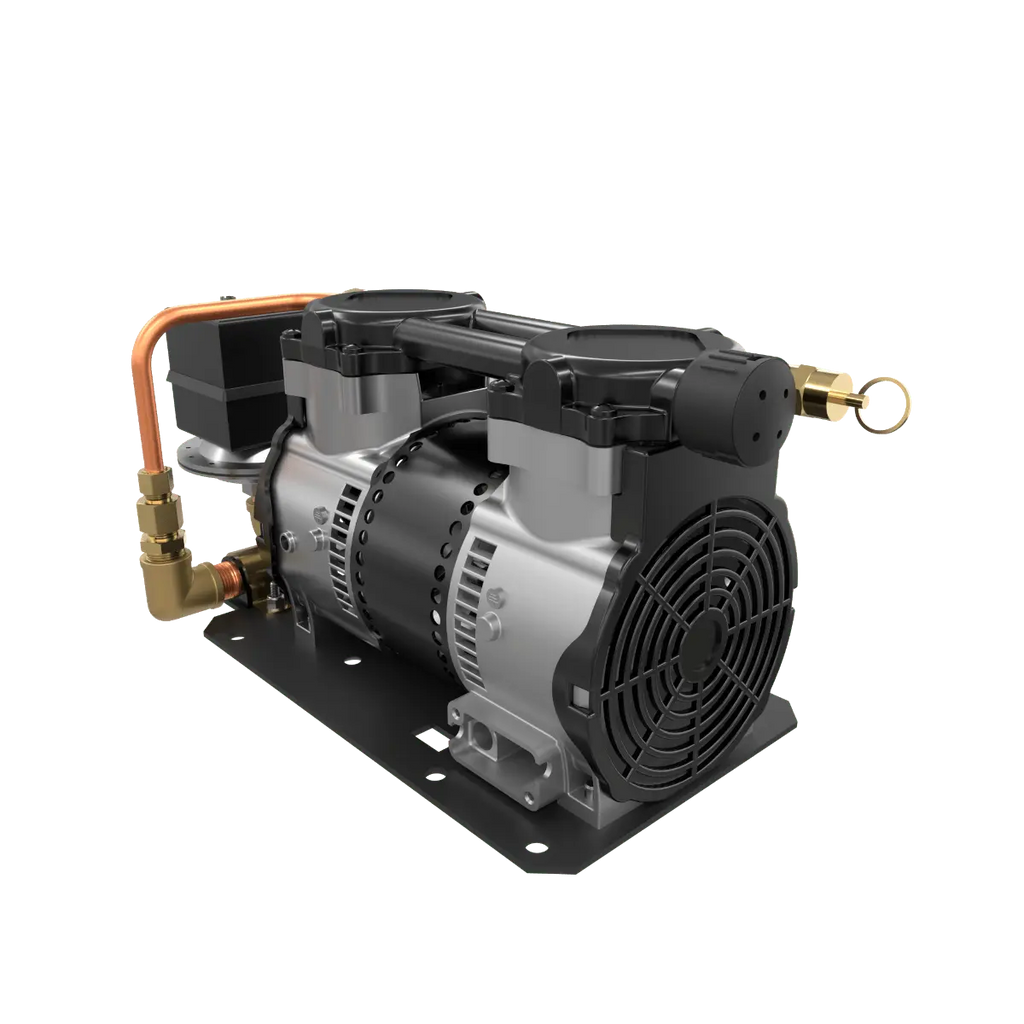

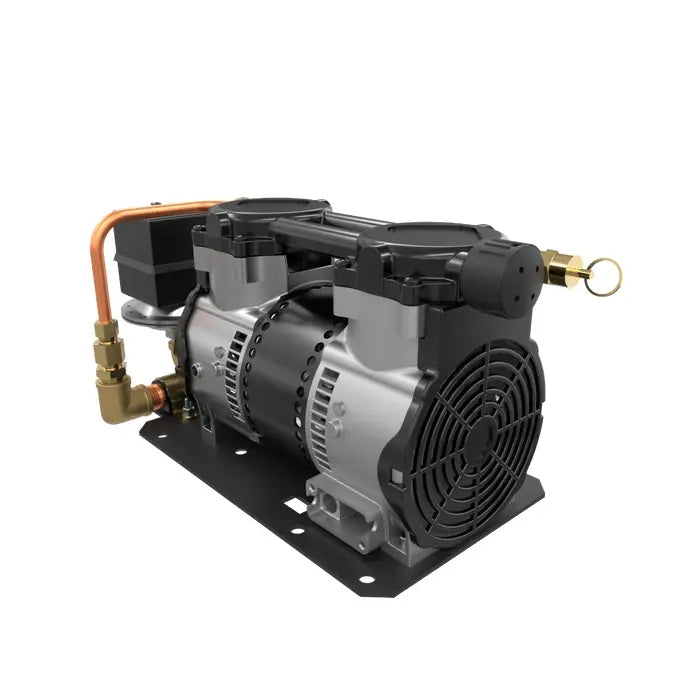

Maintenance Air Compressor Model H-1 for Fire Systems

The Maintenance Air Compressor Model H-1 automatically maintains required air pressure in dry sprinkler, dry pipe, and pre-action systems following an initial fill. This unit installs directly into fire protection assemblies to keep systems reliably pressurized and ready for activation in commercial and industrial facilities. It is compatible with dry sprinkler systems requiring system pressures above 20 PSI (1.0 bar).

This compressor meets NFPA standards for fire protection air compressors, ensuring full code compliance for life safety installations. It also carries UL Listings and FM Approvals to satisfy stringent municipal and insurance testing requirements.

Key Features & Construction

• Corrosion-resistant construction: Built with durable materials that extend service life in demanding environments.
• Oil-less compressor design: Features an electric motor-driven, air-cooled, single-stage setup for dependable operation.
• Factory-installed pressure relief valve: Calibrated to prevent system pressurization beyond 125 PSI (8.6 bar) for safety.
• Integrated check valve: Prevents backflow to help maintain consistent system reliability.
• Tank capacity support: Supports dry systems up to 250 gallons for 60 Hz electrical supply or up to 206 gallons for 50 Hz supply.
• Airflow output: Delivers an average free air output of 3.03 SCFM from 0 to 40 psi gauge on 60 Cycle, and 2.50 SCFM at the same pressure range on 50 Cycle.

Technical Specifications & Compliance Table

Verify local Authority Having Jurisdiction (AHJ) requirements prior to installation. Please note that this item is non-refundable and non-cancellable.

Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
