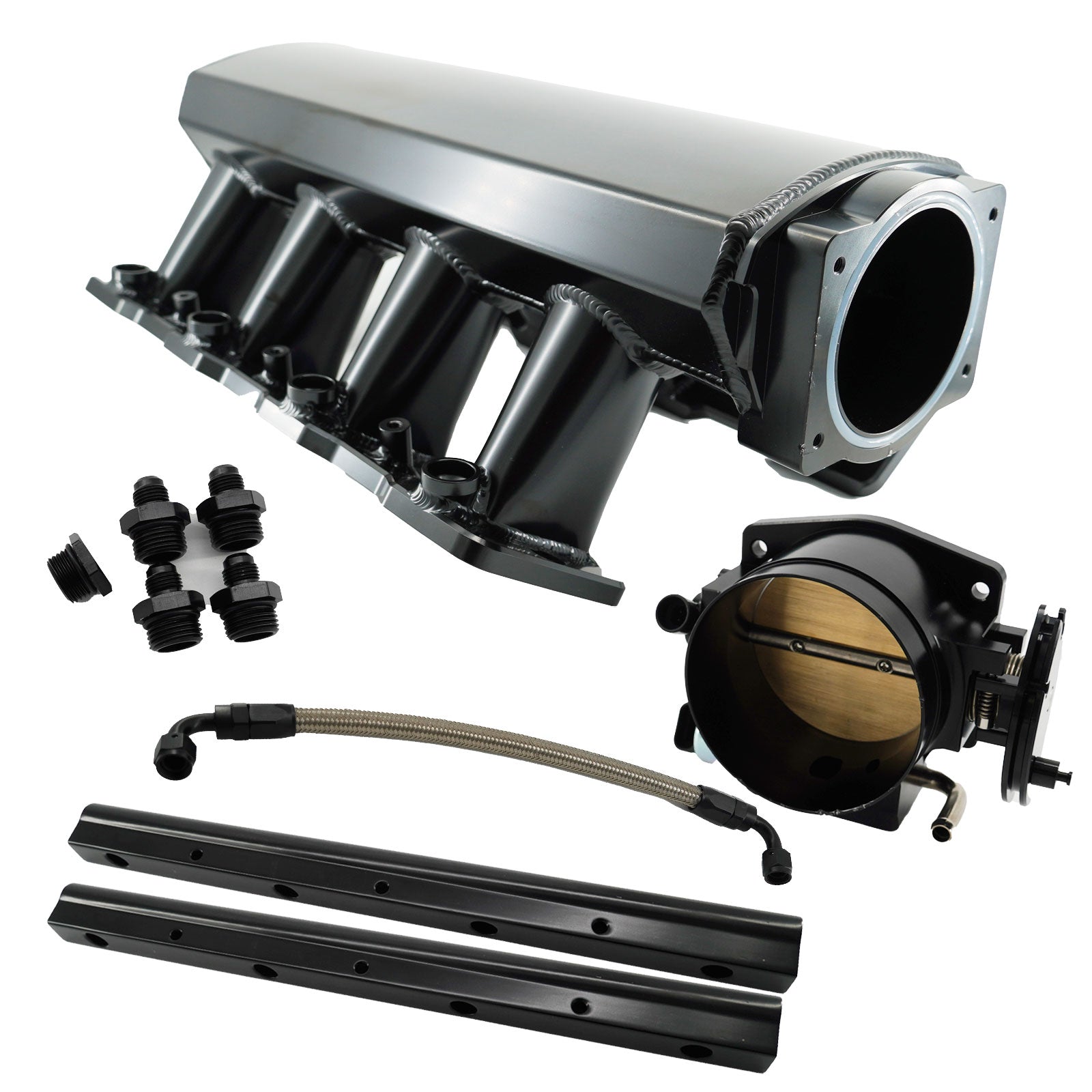

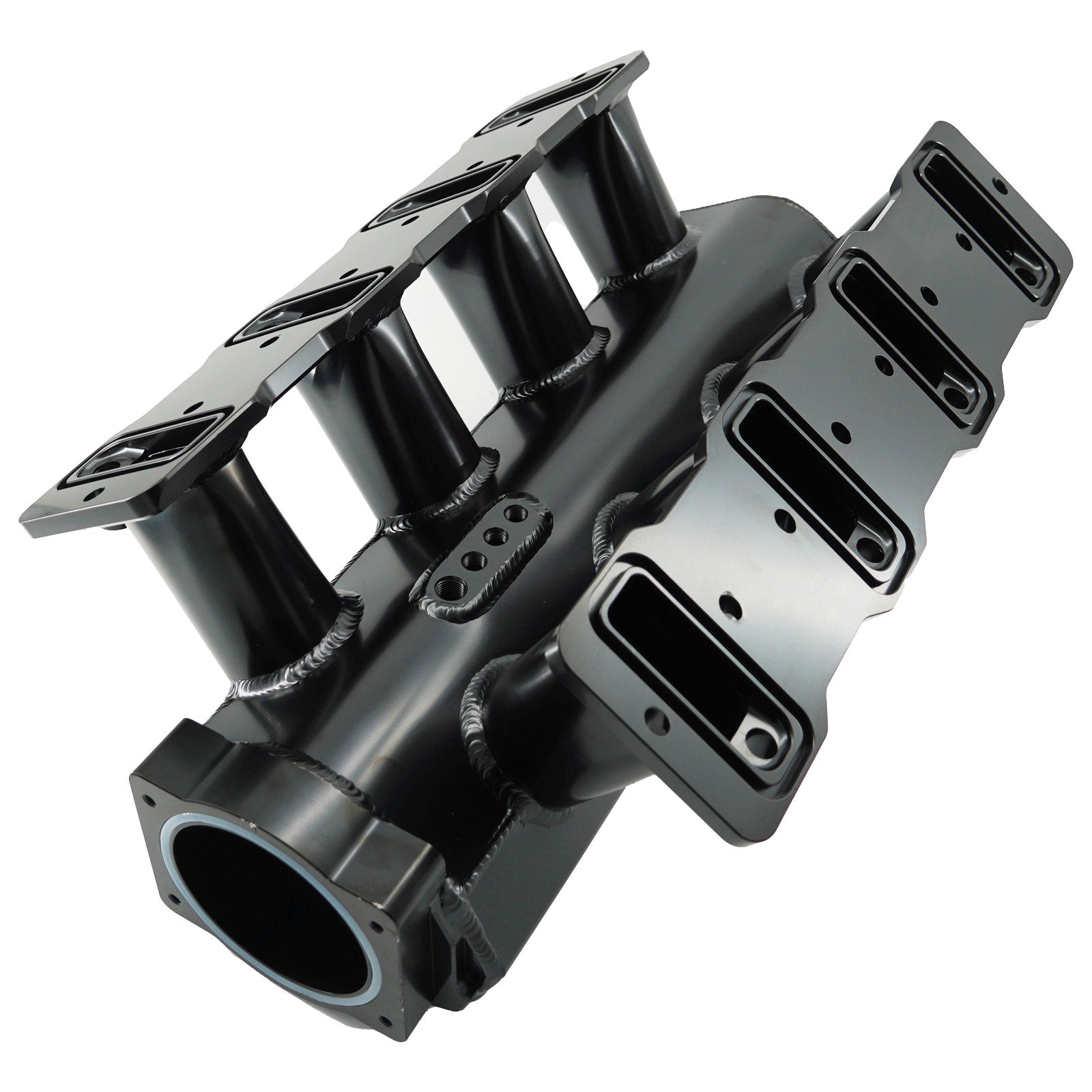

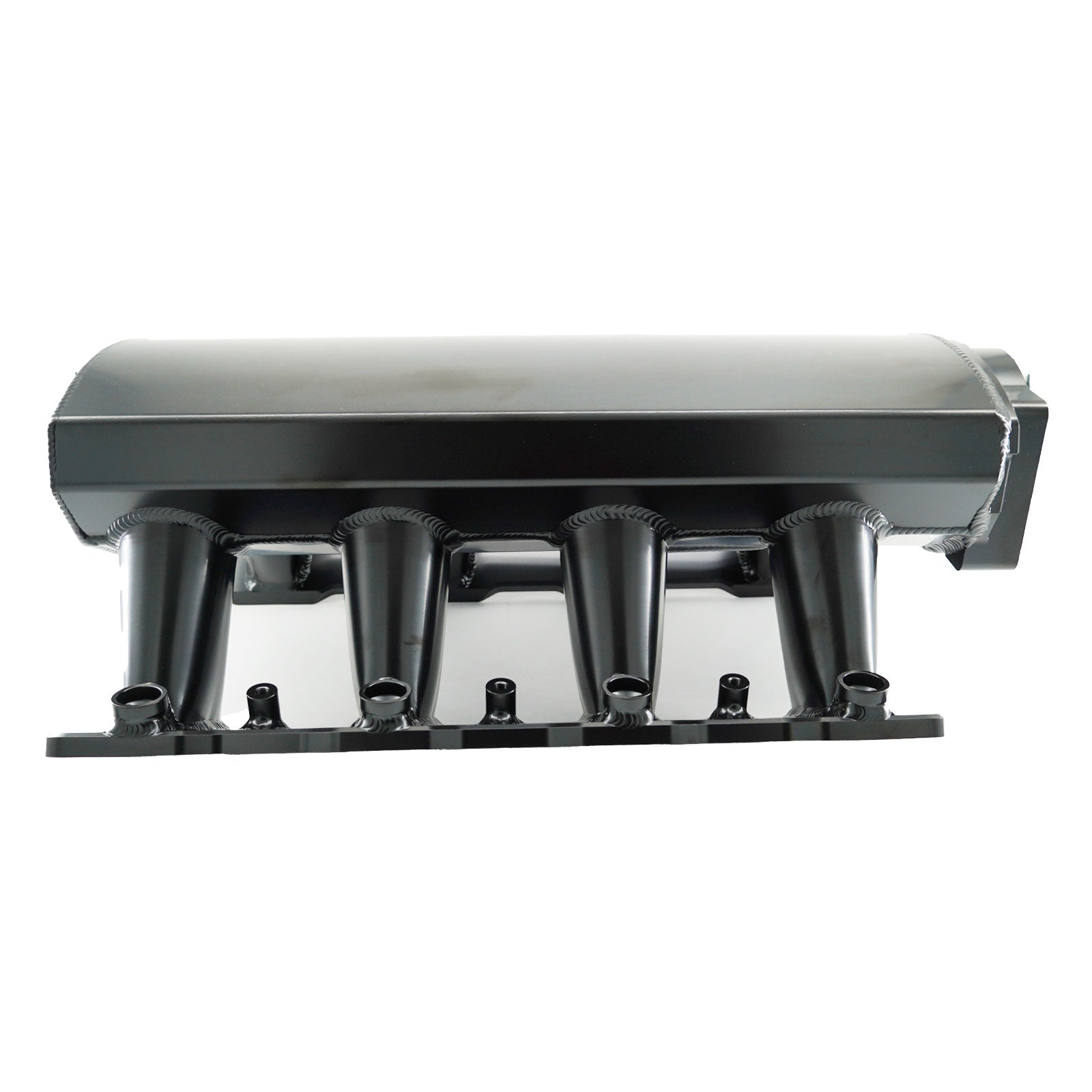

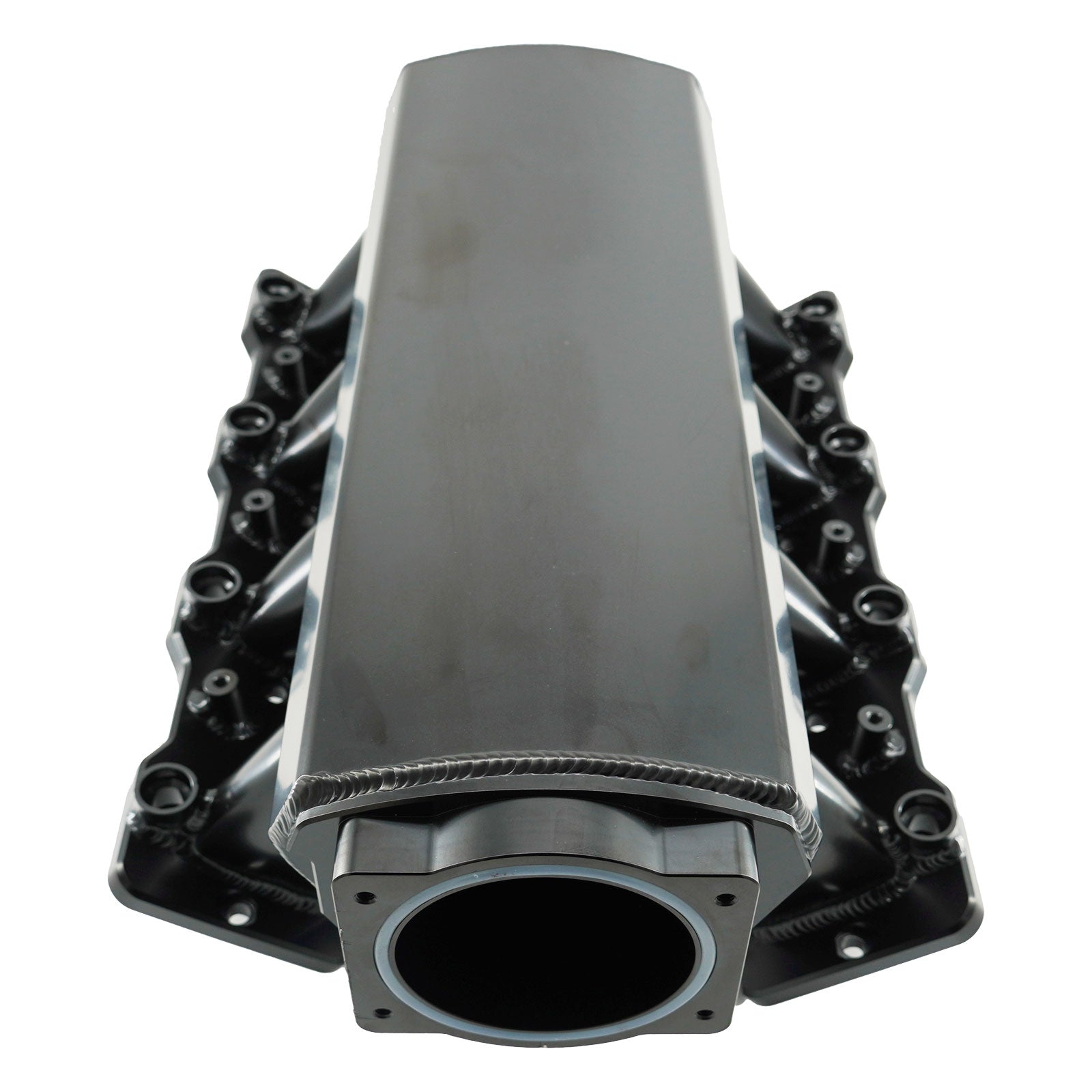

GM LS3 Fabricated Aluminum Intake Manifold

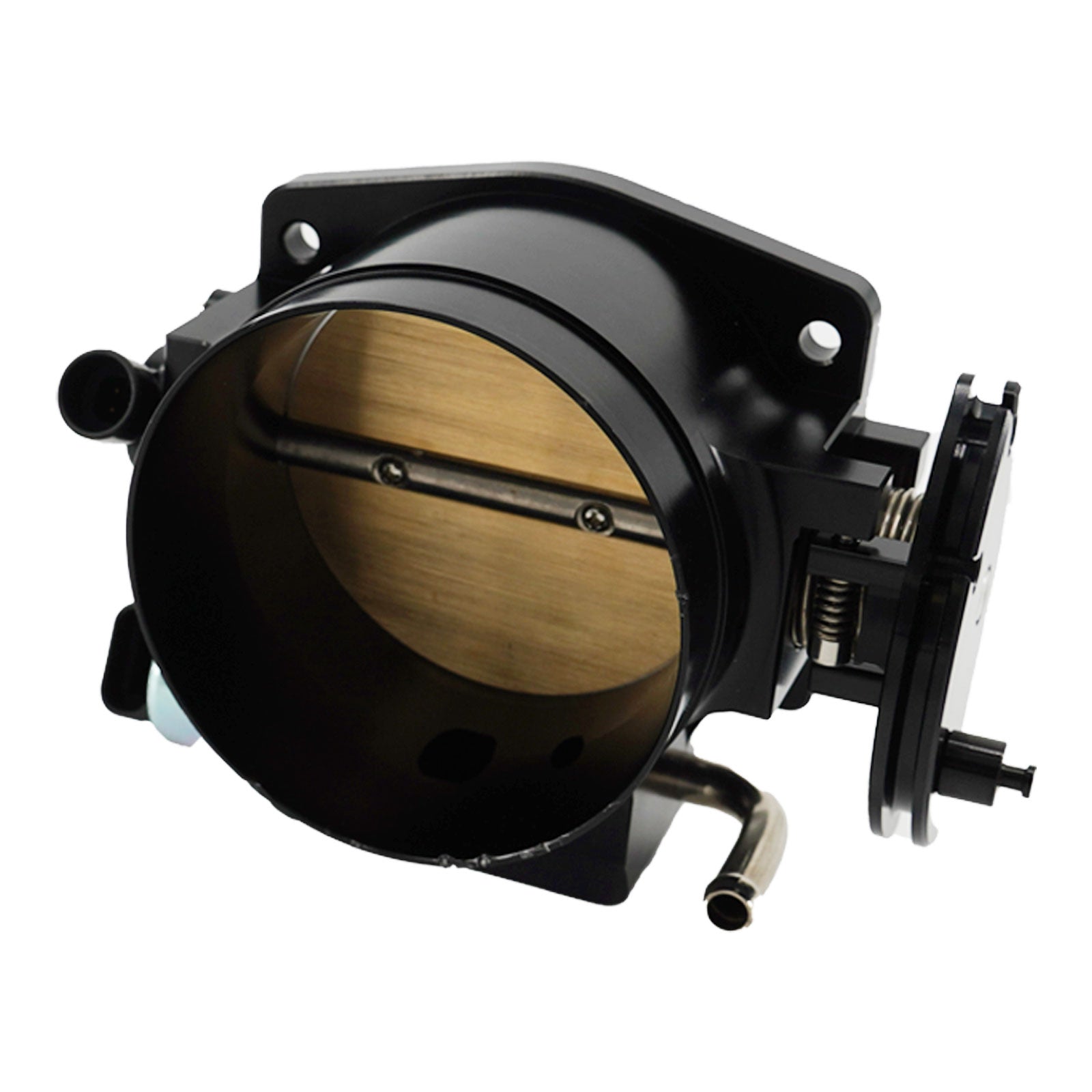

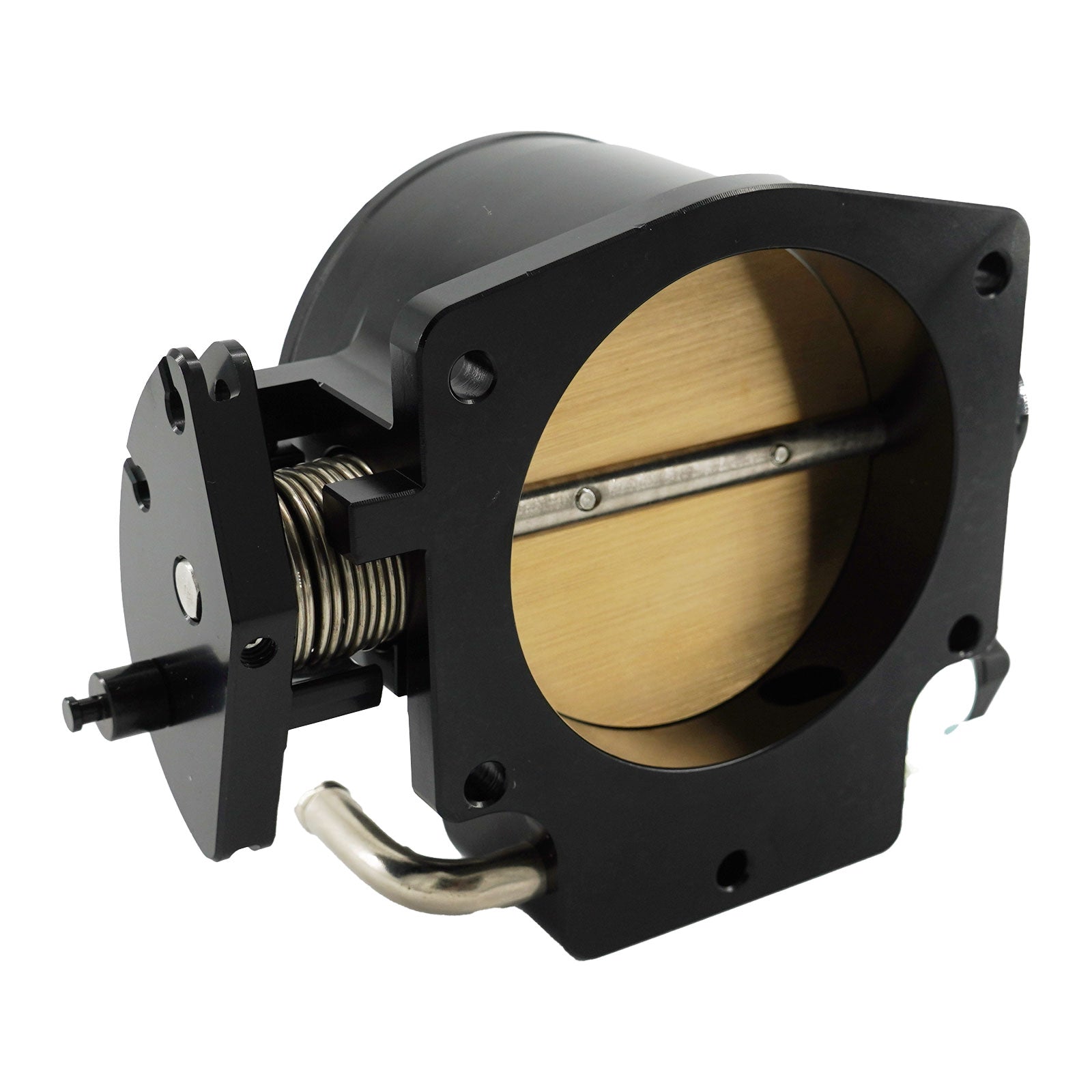

100% fabricated aluminum intake manifold. Featuring a 102mm throttle body opening for maximum air flow.
The construction and design of the runners allow air to move more smoothly at higher RPM's. Constructed from 3.5mm thick T-6061 aluminum and TIG welded to ensure consistent strength and performance.
Specs & Features:
Application: GM LS3 Engines
Style: EFI
RPM Range: 1500-6500
Throttle Body Inlet Bore: 102mm
Construction: Fabricated
Material: Sheet Metal Aluminum
Material Thickness: 3.5mm
Finish: Clear Anodized
Intake Height: 6.750"
Runner length:
Vacuum Port Size: 3 x 1/8" NPT & 1 x 1/4" NPT
Fuel Rails: Not Included

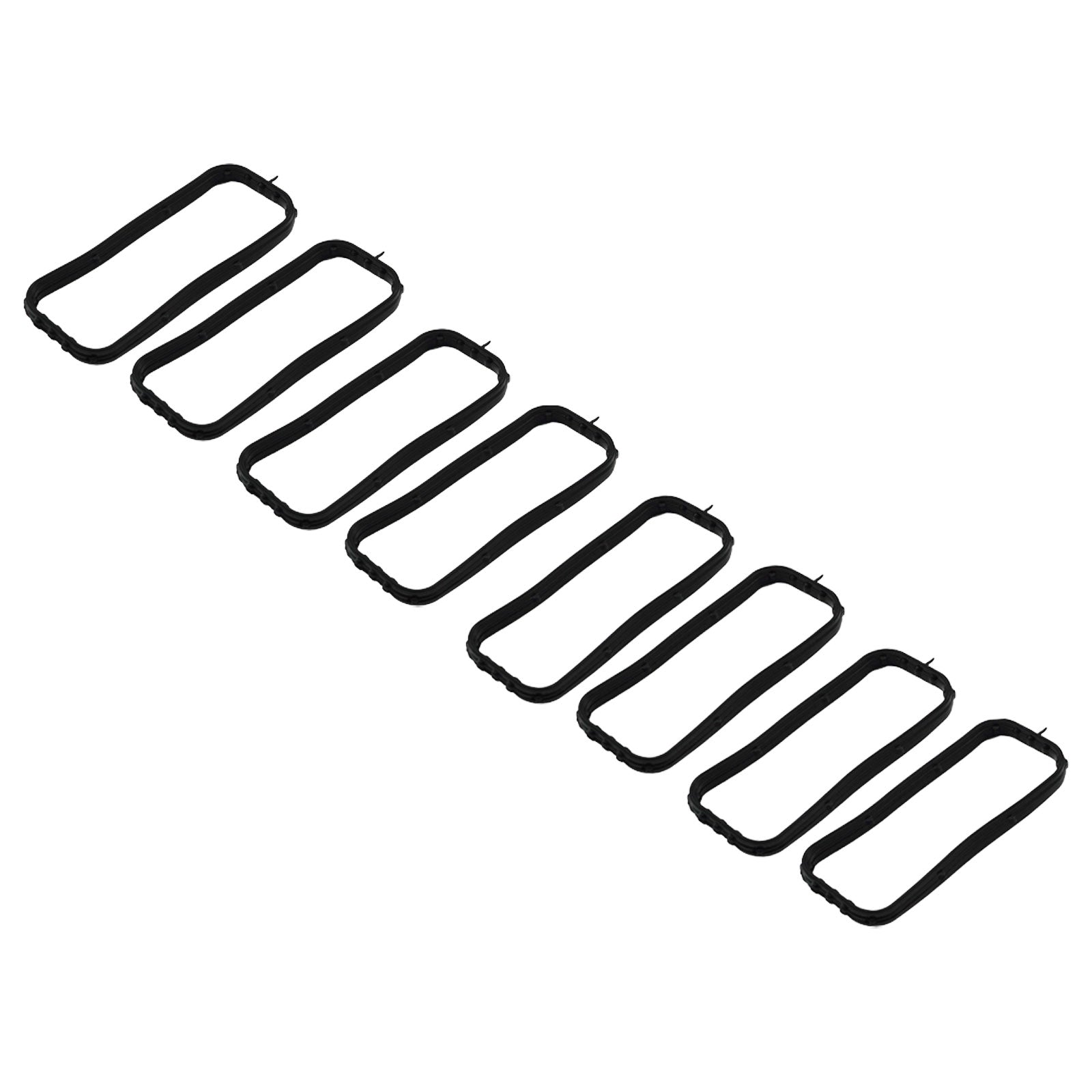

Includes Port O-Rings & Mounting Hardware
