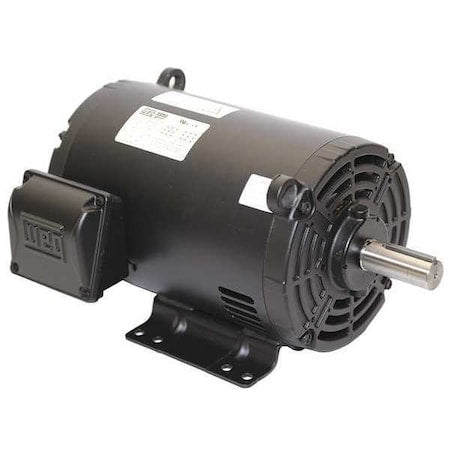

Three-Phase General Purpose Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 3535 rpm Nameplate RPM
Three-Phase General Purpose Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 3535 rpm Nameplate RPM
Shipping calculated at checkout
The WEG - 01036OT3E213T-S is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed for industrial and commercial applications, converting electrical energy into mechanical energy to operate various types of machinery. It's versatile enough to be used across different sectors, from manufacturing lines to HVAC systems.
Key Features of the WEG - 01036OT3E213T-S General Purpose Motor:
- CC Number: The unique identifier assigned by EASA (Electrical Apparatus Service Association) for this motor is CC029A.
- Duty Cycle: This motor is rated for continuous operation under specified conditions.
- Frame: The frame size and design conforming to standard specifications are denoted as 213/5T.
- Full Load Amps: Under full load conditions, this motor is designed to draw a maximum current of 24.0/12.0 A.
- Inverter Rated: Yes - indicates compatibility with variable frequency drives for potential control over speed and torque.
- Horsepower (HP): The unit's output power is rated at 10 HP under specified conditions.
- Nominal Efficiency: Under standard operating conditions, the model has been tested to have an approximate efficiency rate of 89.5%."
- Voltage Compatibility: The unit is rated for operation within voltage ranges from 200-230/440V AC up to 208-230/460V AC as per manufacturer specifications.
- Country Of Origin: ZZ
- Ship Pack Height: 14
- Ship Pack Length: 23.5
- Ship Pack Width: 16
- Ship Pack Weight: 120
