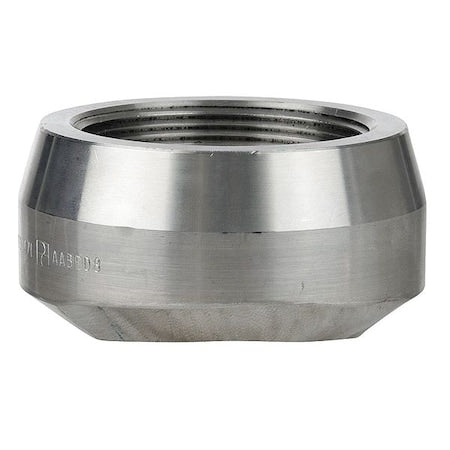

1 in FNPT Stainless Steel Threaded Outlet, Class 3000, 304 Grade, Schedule 80

The ZORO SELECT - 4307002840 is a stainless steel threaded outlet pipe fitting made from 304 stainless steel. It features a female NPT connection on Side A with a nominal pipe size of 1 inch and a female socket connection on Side B sized at 2 inches. This fitting is designed to provide a machined, screw-type branch connection for attachment of pipes, valves, gauges, instruments, or plugs via threaded port, branching rated for Class 3000 pressure (up to 2570 psi @ 100°F and 1965 psi @ 350°F for steam) without welding. It is classified as Class 3000, indicating its pressure rating category, and conforms to MSS SP-97 standards for stainless steel pipe fittings. Key Features:

• - Material: 304 Stainless Steel
• - Specific fitting shape: Threaded Outlet, Outlet
• - Connection types: Female NPT (Side A) x Female Socket (Side B)
• - Nominal pipe sizes: 1 inch (Side A) x 2 inches (Side B)
• - Outside diameter of Side A connection: 2-1/8 inches
• - Pressure rating: Class 3000 with maximum pressure 2570 psi @ 100°F and max steam pressure 1965 psi @ 350°F
• - Includes no pre-applied thread sealant or additional seal
• - Color: Silver
