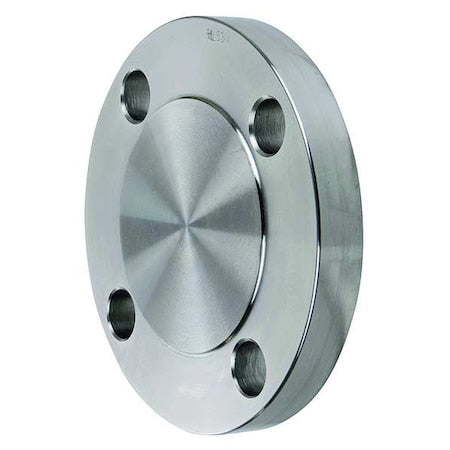

Flange, Stainless Steel, Blind, 4 7/8 in
Flange, Stainless Steel, Blind, 4 7/8 in
Shipping calculated at checkout
The ZORO SELECT 4381005020 is a stainless steel blind flange made from forged 316 stainless steel, rated for operation within the specified pressure ranges of up to 720 psi for general pressure and 300 psi for steam. The product is intended for use in piping systems in accordance with standard specifications.
Key Features:
- - Material Grade: 316/316L stainless steel, offering corrosion resistance and durability
- - Connection Surface: Raised Face for sealing surface contact
- - Connection Type: Bolted flange connection with 4 bolt holes
- - Bolt Circle Diameter: 3 1/2 inches, indicating bolt hole placement
- - Bolt Hole Diameter: 3/4 inches for bolt sizing
- - Fitting Schedule/Class: Class 300, indicating pressure rating
- - Flange Outside Diameter: 4 7/8 inches
- - Flange Thickness: 11/16 inches
- - Nominal Pipe Size: 1 inch
- - Overall Length: 11/16 inches
- - Standards: ASTM-SA182, ANSI B16.5 compliance
- Ship Pack Height: 0.7
- Ship Pack Length: 5
- Ship Pack Width: 5
