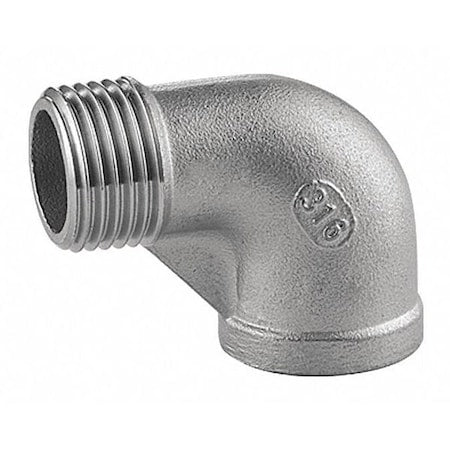

2-1/2" MNPT x FNPT 316 SS Street Elbow

The ZORO SELECT - 60SE113N212 is a stainless steel street elbow fitting with one male (street) end and one female (socket) end, designed for direct connection without the need for a short nipple. It features a 90° angle and is rated for use in piping systems conveying air, natural gas, non-potable water, oil, potable water, or steam within specified operating parameters. The fitting's stainless steel (316 grade) provides corrosion resistance and strength, specified for maximum operating pressures up to 300 psi for general piping and 150 psi for steam systems. It meets industry standards for connection dimensions and pressure ratings (Class 150) and is suitable for industrial, plumbing, or process piping applications, depending on proper installation and system parameters.

Key Features:

• - Fitting Shape: Street Elbow, with one male (street) end and one female (socket) end for direct pipe connection.
• - Application Compatibility: Designed for use with air, natural gas, water, oil, and steam systems.
• - Material Grade: 316 stainless steel offering corrosion resistance and strength.
• - Pressure Rating: Specified for maximum operating pressures up to 300 psi for general piping and 150 psi for steam systems.
• - Connection Types: Fittings with standard threaded ends (e.g., NPT/BSP), with 8 threads per inch on each side.
• - Pressure Class: Class 150, indicating rated pressure capacity according to industry standards.
• - Standards: Meets industry standards for connection dimensions and pressure ratings (Class 150).
• - Dimensions: Nominal pipe size 2 1/2 inches, with matching outside diameters of 2 1/2 inches on each connection.

• Ship Pack Height: 3.7
• Ship Pack Length: 5.9
• Ship Pack Width: 3.5
