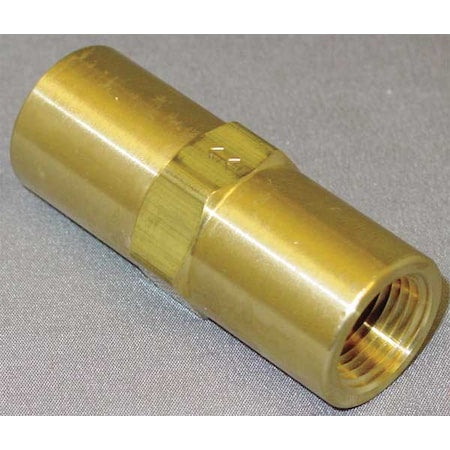

3/8" FNPT Brass Piston Spring Check Valve
$32.30
Precio de oferta
$32.30
Precio habitual
Ir directamente a la información del producto
Request for Tax Exemption
Request a Quote
3/8" FNPT Brass Piston Spring Check Valve
$32.30
Precio de oferta
$32.30
Precio habitual
Shipping calculated at checkout
ZORO SELECT series 615 piston spring check valve is an inline, single-flow check valve for compatible air and fluid applications. It provides one-direction flow control using a spring-loaded brass piston. The brass body features 3/8 in FNPT x FNPT female threaded connections, a 1 psi cracking pressure, and a mounting orientation of horizontal or vertical.
Key Features:
- - Valve type: Piston spring check valve with inline piston mechanism and inline body design.
- - Body and internals: Brass body, brass check mechanism, brass seat, stainless steel spring, and Viton/FKM seal.
- - Connections: 3/8 in FNPT x FNPT with female NPT connections on both ends.
- - Pressure rating: 500 psi maximum operating pressure and maximum water pressure.
- - Temperature range: -20 Degrees F to 180 Degrees F operating temperature; maximum temperature rating: 375 Degrees F.
- - Flow characteristics: Single-flow design, Cv 2.2, and 1 psi cracking pressure.
- - Mounting: Horizontal or vertical orientation.
- - Dimensions: 2.25 in overall length, 7/8 in overall height, and 7/8 in hex size.
- - Standards: UL, UR.
- Ship Pack Height: 1
- Ship Pack Length: 5.5
- Ship Pack Width: 5
