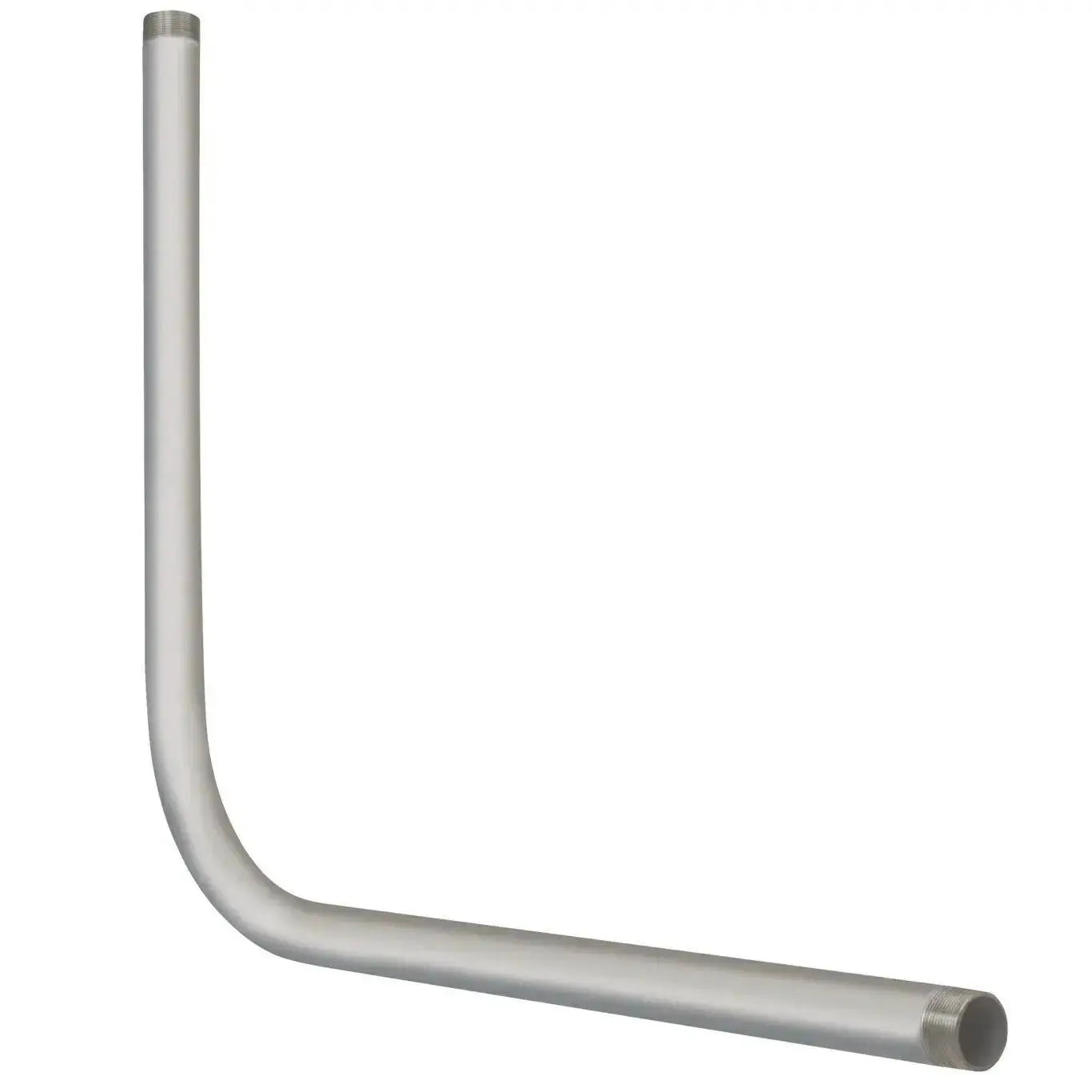

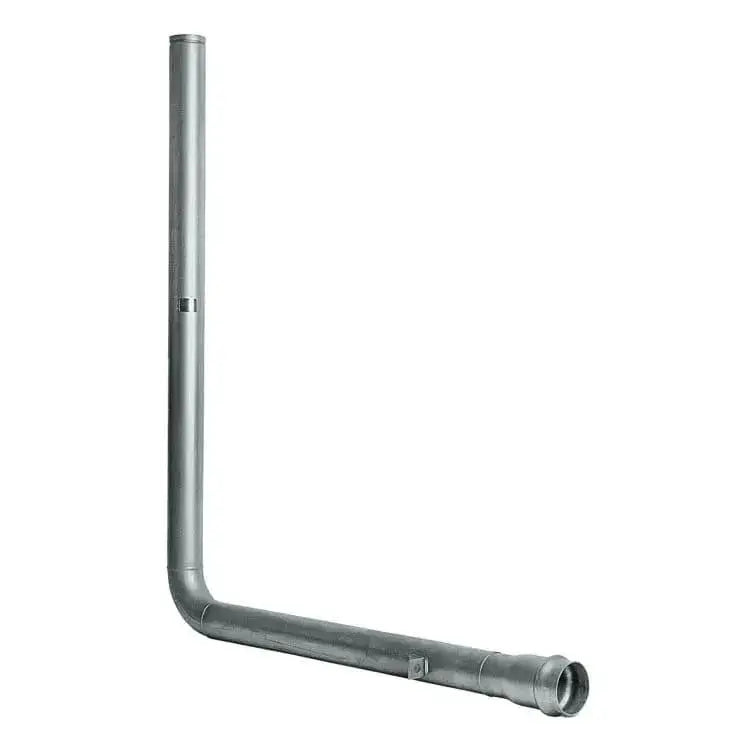

AMES In-building Fire Riser Pipe 90 Degree Bend for Building Safety

The AMES In-building Fire Riser Pipe 90 Degree Bend serves as a critical infrastructure component designed to bridge the gap between a building’s main water supply and its overhead fire suppression network. Installed to facilitate a smooth, joint-free transition from underground water supplies through the foundation and into commercial, industrial, or multi-story residential buildings, this assembly ensures reliable vertical water distribution during an emergency. By maintaining robust water pressure and volume, the 90-degree bend ensures sprinkler heads and standpipe connections receive the necessary flow rate to combat fires effectively in their early stages.

This fire protection assembly complies with rigorous industry standards to satisfy essential building safety regulations and code requirements mandated for fire suppression infrastructure. Its precision-engineered 90-degree angle allows for smooth connections in tight building spaces, reducing potential leak paths and streamlining installation logistics for trade contractors.

• Durable 304 Stainless Steel Construction: Crafted from high-grade stainless steel to provide exceptional corrosion resistance and a long service life in demanding environments.
• High Pressure Rating: Built to withstand operational demands up to 200 PSI to maintain consistent water delivery across comprehensive fire protection networks.
• Streamlined Installation: Features integrated installation tabs, standard grooved-end connections (AWWA C606), and CIPS couplers (AWWA C900) to reduce on-site labor time.
• Critical Flow Design: Engineered to maintain optimal water pressure and volume for overhead sprinkler and standpipe systems.

Contractors and facility managers must verify local Authority Having Jurisdiction (AHJ) requirements and consult manufacturer technical specifications prior to commencing installation.

Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
