A sump pump only matters when the water level rises, which is the worst time to learn that the pump does not fit the basin, cannot overcome the discharge head, or has a float switch that cannot move freely. The submersible vs pedestal decision starts with the sump pit itself, but it should end with a complete look at flow, head, switch operation, service access, and the consequences of pump failure.
For most finished residential basements and many commercial drainage applications, a submersible sump pump is the standard choice. Pedestal pumps still solve specific problems well, particularly where a narrow pit, frequent servicing, or lower upfront cost matters. Neither design is automatically better. The right unit is the one that matches the water volume and installation conditions without creating a maintenance problem.

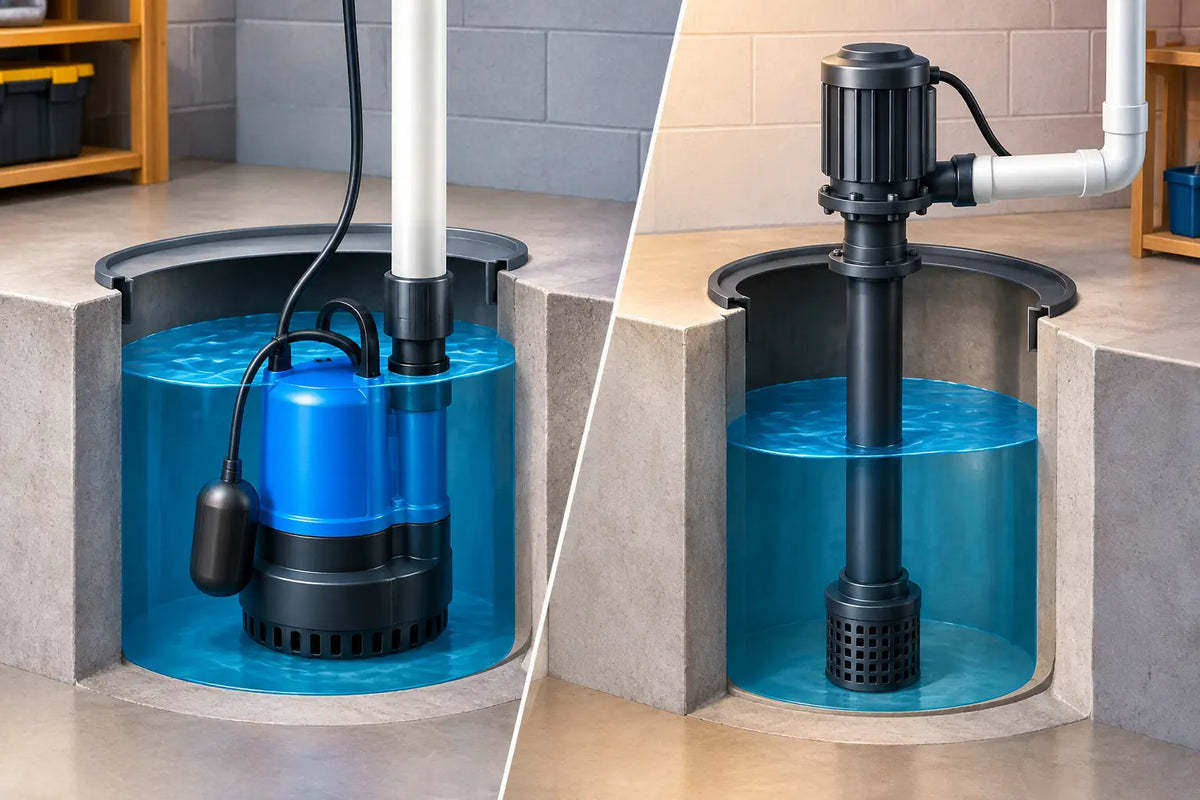

Submersible vs Pedestal: The Basic Difference
A submersible sump pump places both the motor and pumping section inside a sealed housing at the bottom of the sump basin. Water surrounds the pump during operation, helping transfer heat away from the motor. The pump is normally covered by a fitted basin lid, which helps reduce noise and limits moisture, debris, and odors from entering the room.
A pedestal sump pump has a pump body at the bottom of the pit and a vertical column that carries the motor above the basin. The motor remains dry and visible, while the lower pump section handles the water. This design often allows a pedestal pump to operate in a smaller-diameter pit because the motor does not occupy space inside the basin.
The distinction affects more than appearance. It changes how much basin space is available, how the equipment is cooled, how easily components can be accessed, and how the installation performs in occupied spaces.
When a Submersible Sump Pump Is the Better Choice
Submersible pumps are usually the practical choice when the sump basin has adequate diameter and depth, especially in a finished basement, utility room, crawl space, or commercial building where noise control matters. With the motor below the basin cover, the operating sound is less noticeable than a pedestal unit with an exposed motor above the pit.
The sealed design also reduces the chance that someone will bump the motor, snag wiring, or damage the float mechanism. In locations with children, pets, storage activity, or frequent foot traffic, enclosing the pump below a secure lid is a meaningful advantage.
Many submersible designs provide strong performance in a compact footprint. A properly selected unit can handle ordinary groundwater infiltration, foundation drainage, and moderate stormwater entry while keeping the basin area clear. Models with cast-iron housings, mechanical seals, thermal overload protection, and reliable vertical or tethered float switches are common choices for demanding duty cycles.
Submersible pumps do have limits. They must fit inside the basin with enough room for the float to travel without touching the wall, discharge pipe, pump cord, or basin cover. A pump that fits physically but has a restricted float is not a reliable installation. Check the manufacturer’s stated minimum pit diameter, overall height, and switch clearance before ordering.
Service also requires removing the pump from the basin. That is not difficult when the discharge uses a union or quick-disconnect arrangement, but it is less convenient than servicing an exposed pedestal motor. Use a check valve above the pump and a serviceable connection so the pump can be lifted without cutting pipe.
When a Pedestal Pump Makes Sense
Pedestal pumps remain useful in narrow or shallow sump pits where a standard submersible unit cannot operate correctly. Because the motor sits above the basin, the lower pump body may fit a confined pit that does not have enough diameter for a submersible pump and its float assembly.
They are also easier to inspect. A maintenance technician can see the motor, power cord, shaft area, and upper switch components without lifting the unit from the basin. In a building where staff regularly inspect equipment, that access can shorten basic troubleshooting and cleaning tasks.
Pedestal pumps can be a cost-conscious solution for light to moderate residential drainage duty. Their motors are not submerged, so a failed motor may be more straightforward to identify and replace on certain designs. They can also provide long service when installed in a clean basin and used within their rated operating range.
The trade-off is exposure. A pedestal pump is louder, occupies vertical space above the pit, and is easier to strike with stored items or tools. The upright column can also make basin covers more difficult to fit. In a finished or frequently occupied area, the visual and noise difference is often enough to favor a submersible model.
Pedestal units are not automatically easier to maintain in every condition. Their narrow shafts, exposed components, and switches still need protection from corrosion, dirt, and accidental damage. If the basin regularly receives muddy water, gravel, or construction debris, correct basin cleaning and inlet control matter more than the pump style.
Size the Pump by Head and Flow, Not Horsepower Alone
Horsepower is useful, but it is not a complete pump specification. A 1/3 HP pump may be adequate for a typical home sump system, while a 1/2 HP or higher-capacity unit may be needed for higher inflow, longer discharge piping, or greater vertical lift. The actual question is how many gallons per hour the pump can deliver at your total dynamic head.
Start with vertical lift. Measure from the water level in the sump pit to the highest point of the discharge line. Then account for the horizontal run, elbows, check valve, pipe diameter, and outlet restrictions. These create friction loss, which adds to the head the pump must overcome.
A pump’s performance curve shows why this matters. Flow decreases as head increases. A unit advertised with a high gallons-per-hour rating may deliver substantially less flow at 10, 15, or 20 feet of head. Compare the required flow at the actual head condition, not only the maximum flow listed on a product card.
Discharge size also affects performance. Restricting a pump with undersized pipe can reduce capacity, increase cycling time, and add strain to the motor. Follow the pump manufacturer’s recommended discharge size, and avoid unnecessary fittings. A properly installed check valve prevents water in the vertical pipe from falling back into the basin after each cycle.
For unusually high groundwater, large foundation drainage systems, elevator pits, commercial facilities, or critical spaces, consider a duplex arrangement with two pumps and an alarm. One pump handles normal operation, while the second provides backup during high inflow or primary-pump failure. A high-water alarm adds warning before water reaches the floor.
Float Switches and Basin Conditions Matter
A capable pump cannot protect a property if its switch does not activate. Submersible pumps may use vertical float switches, tethered floats, diaphragm switches, or electronic controls. Pedestal pumps commonly use a float mounted on or near the vertical column. Each style can work well when it has sufficient clearance.
A vertical float is compact and useful in smaller basins, but it should be checked for free movement. A tethered float needs more open space and can hang up on discharge piping or a basin wall if the pit is too tight. Never assume a replacement pump will use the same switch geometry as the old one.
The basin should be large enough to limit rapid cycling. A very small pit fills and empties quickly, causing the motor to start more often than necessary. Frequent starts add wear and can reveal that the basin, pump capacity, or incoming drainage system needs attention.
Keep the pit reasonably clean. Small amounts of sediment are normal, but excessive sand, silt, scale, or debris can obstruct an intake, interfere with a float, and shorten impeller life. Before replacing a pump, inspect the basin bottom and clean it if needed. Replacing equipment without removing the cause of repeated clogging wastes time and money.
Installation Details That Protect the Pump
Use a properly grounded receptacle and follow local electrical requirements. A dedicated circuit is often appropriate for a primary sump pump, particularly where a tripped shared circuit could leave the pump without power. Keep cords intact and accessible. Do not use an extension cord as a permanent installation method.
Install the discharge line so it directs water well away from the foundation and does not create a recirculation path back toward the sump. In freezing climates, the exterior section needs a layout that resists ice blockage. The discharge should also comply with local rules regarding stormwater, sanitary sewer connections, and property drainage.
Test the pump after installation by filling the basin with water and watching a complete cycle. Confirm that the float starts the pump, the discharge carries water away, the check valve closes correctly, and the pump shuts off without short cycling. Repeat this test before periods of heavy rain and after any plumbing or drainage work near the pit.
A battery backup pump or water-powered backup system can be valuable where outages occur during storms. The best backup option depends on water supply conditions, expected runtime, local code, and the risk level of the area being protected. A backup system does not remove the need for maintenance, but it gives the primary system a second layer of protection.
Choose for the Basin and the Consequence of Failure
Choose a submersible pump when you have adequate pit space and want quieter operation, a covered installation, and protected components. Choose a pedestal pump when basin dimensions are restrictive, visible motor access is valuable, or the application is light-duty and the exposed design is acceptable.
Before purchasing, verify pit diameter, pump dimensions, switch travel, voltage, discharge size, required flow at operating head, and the intended duty cycle. Water Services Inc can help buyers compare pump specifications with the valves, fittings, check valves, controls, and replacement components required for a complete installation. The dependable choice is not the pump with the largest number on the box. It is the pump that starts when it should, moves the required water at your actual head, and can be serviced before the next storm tests it.
