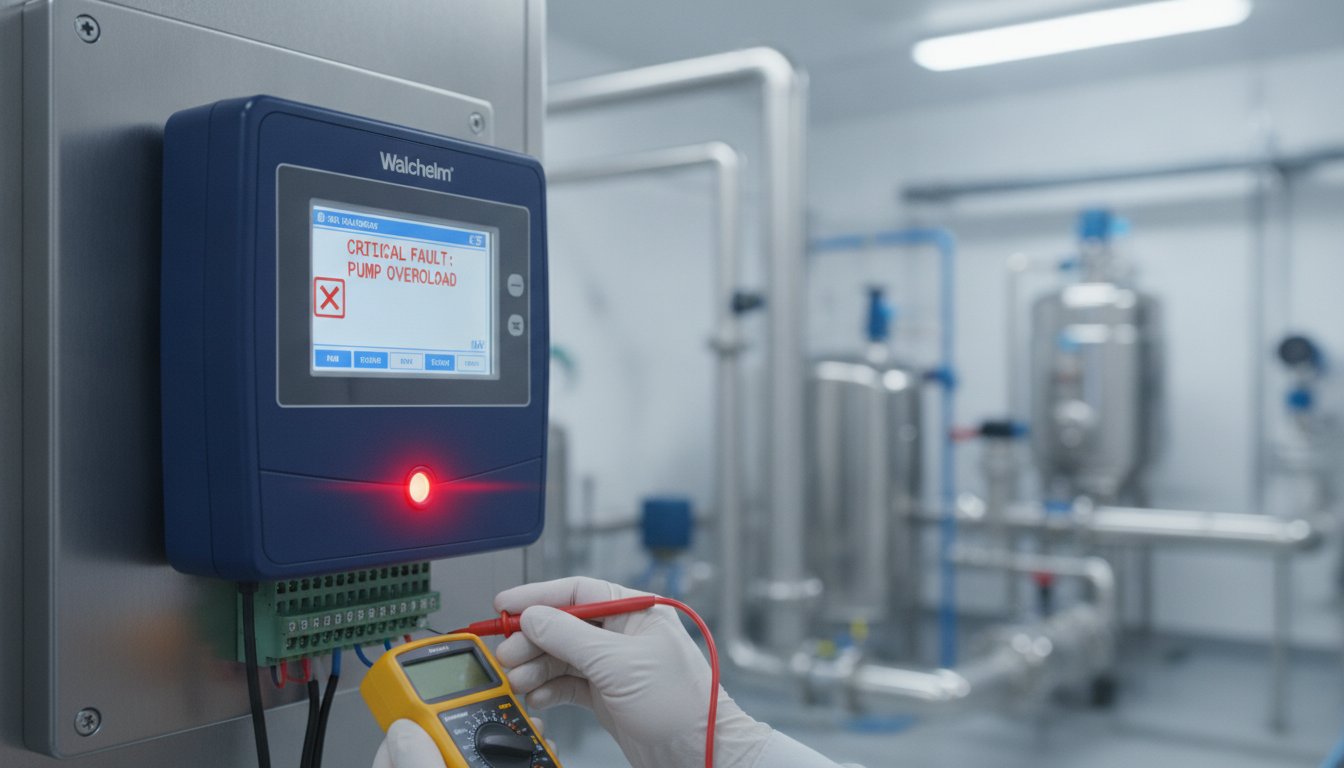

Troubleshooting Walchem Controllers: Industrial Diagnostic & Repair Guide (2026)

The "broken" controller on your plant floor is likely functioning perfectly. While a flashing red alarm and halted chemical dosing suggest a hardware catastrophe, 90% of industrial dosing issues stem from environmental interference or sensor depletion rather than internal circuitry failure. Mastering the process of troubleshooting Walchem controllers is the difference between a five minute fix and hours of unnecessary system downtime.

We understand that in critical mining and industrial water treatment environments, inaccurate dosing creates immediate compliance risks and safety hazards. This guide provides the technical protocols required to diagnose the W100, W600, W900, and Intuition series controllers with precision. You will learn how to isolate faults between hardware and peripherals, perform recalibration, and verify your system against the latest June 2026 firmware standards, such as version 4.31 for Intuition models.

We provide a clear path to resolve errors, from checking the free Walchem Fluent cloud interface to identifying when a specific input card requires replacement. This information ensures your facility maintains technical integrity and operational stability without relying on guesswork.

Identifying Walchem Controller Error States and Fault Codes

Walchem alarm architecture uses a tiered priority system to protect industrial processes from chemical over-feed and equipment damage. Alarms are categorized into Critical and Non-critical states. A Critical fault, such as an 'Output Timeout' or 'High-High' alarm, typically halts all control outputs to prevent hazardous conditions. Non-critical faults provide a system alert but allow the controller to continue its primary control loops. Understanding these distinctions is fundamental to an Industrial Process Control Overview and is the first step in troubleshooting Walchem controllers effectively.

Standard fault codes provide immediate data on system health. 'Sensor High/Low' indicates the measured value has exceeded the programmed range, often pointing to a calibration drift or a disconnected probe. 'No Flow' signals that the interlock input is open, which automatically disables chemical pumps. The 'Output Timeout' code is a vital safety feature. It triggers when a pump runs for a pre-set duration without reaching the desired setpoint, preventing empty chemical tanks from causing pump cavitation or process contamination.

For modern Intuition 6 and 9 series units running the June 2026 firmware (v4.31), advanced diagnostics are accessible directly through the menu map. These units provide a detailed alarm history and real-time input/output status, which simplifies the identification of intermittent electrical noise or signal interference. Legacy W100 and W400 models rely on a simpler LED status interface. A green 'heartbeat' LED indicates the CPU is active, while a red LED signifies an active alarm state that requires manual acknowledgement or resolution.

Common System Alarms and Their Meanings

• Flow Switch Alarms: Distinguish between a dry line and a failed switch. If the pump stops but the line is pressurized, the flow switch may be fouled with mineral scale or debris.
• Limit Timers: If your pump stops dosing even when the setpoint isn't reached, check the 'Max Time' setting in the control menu. This fail-safe prevents runaway dosing.
• Interlock Alarms: These occur in complex dosing skids where one relay depends on the status of another. Troubleshooting requires verifying the electrical continuity of the interlock circuit.

Visual Inspection and Power-On Self-Test (POST)

Before adjusting software parameters, perform a physical inspection of the hardware. Check the internal fuse if the display is blank. A blown fuse often suggests a power surge or a shorted solenoid valve rather than a defect in the controller itself. For replacement components or upgraded hardware, consult our electric power controls inventory to ensure compatibility with your existing skid.

The Power-On Self-Test (POST) occurs every time the unit is energized. Watch the 'System OK' LED. A solid red light during startup indicates a hardware initialization failure, whereas a flashing green light confirms the motherboard is functional. If the unit remains unresponsive, a soft reset—achieved by power cycling the unit for 30 seconds—can often clear temporary logic hangs. Only perform a factory default reset if you have a backup of your configuration settings, as this will erase all calibration data and relay logic.

Troubleshooting Sensor and Calibration Discrepancies

Field data indicates that approximately 70% of reported "controller errors" in industrial water systems are actually caused by pH or ORP sensor depletion. When troubleshooting Walchem controllers, technicians often assume a logic failure when the issue is actually electrode exhaustion. A depleted sensor will show erratic readings or fail to respond to buffer solutions during calibration. This leads to inaccurate chemical dosing and potential compliance risks in critical processes.

Effective troubleshooting Walchem controllers requires a systematic approach to isolating these peripheral failures. If your display shows a "Sensor High" or "Sensor Low" alarm, the first step is to verify the physical condition of the probe. Signal drift is a common symptom of aging electrodes; however, it can also be caused by electrical ground loops in the piping system. If your diagnostic results confirm hardware failure, sourcing authorized water treatment replacement parts is the most reliable path to restoring system uptime.

pH and ORP Sensor Diagnostics

The "bucket test" is the most effective way to isolate environmental interference from the controller's internal logic. Remove the sensor from the process line and place it in a plastic container with a known buffer solution. If the reading stabilizes, the issue is likely a ground loop or electrical noise in the process pipe. For fouled sensors, use a dilute acid wash for mineral scale or a mild detergent for organic oils. Always inspect the BNC connector for moisture. Corrosion on the signal pin will cause massive signal drift and calibration failure.

Conductivity and Disinfection Sensor Faults

Sluggish response times in conductivity sensors usually indicate film buildup on the electrodes. In mining applications, electrodeless toroidal sensors are preferred because they resist fouling; however, they can still suffer from "Open Input" errors if the internal winding fails. For chlorine or chlorine dioxide sensors, membrane integrity is the primary failure point. A torn membrane or air bubbles trapped behind the film will cause the controller to display a "Sensor Low" alarm. If the controller reports an "Open Input" while the sensor is connected, check the wiring at the terminal block before assuming a card failure.

Automatic Temperature Compensation (ATC) is critical for dosing precision. A failed RTD or thermistor within the sensor assembly will cause the controller to calculate chemical demand based on a default 25°C temperature. In high-temperature industrial processes, this leads to significant dosing inaccuracies. Verify the temperature reading on your Intuition or W900 display against a calibrated thermometer to confirm ATC functionality. If the readings differ by more than 2°C, the sensor assembly likely requires replacement to maintain technical integrity.

Resolving Hardware Failures: Relays, Power, and Displays

Hardware failures in demanding industrial environments often manifest as intermittent relay chatter or unresponsive user interfaces. When troubleshooting Walchem controllers, it is vital to distinguish between a component failure and an external electrical issue. Relay chatter occurs when the magnetic coil lacks sufficient voltage to maintain contact closure, a condition frequently seen in facilities where long wire runs cause significant voltage drops. Use a multimeter to verify that the terminal voltage matches the hardware specifications before condemning the controller motherboard.

Blank or frozen displays on an Intuition-9 or W900 unit may not require a full system replacement. High vibration from nearby heavy machinery often loosens internal ribbon cables over time. Verify the seating of all internal connectors before diagnosing a CPU failure. To ensure signal integrity for remote monitoring, test the 4-20mA analog output using a loop simulator. If the controller is programmed to 12mA but the simulator detects no current, the output circuit is likely open. For more information on system setup, consult our guide on Precision Chemical Dosing for integration strategies.

Relay and Output Troubleshooting

Mechanical relays are rated for a specific number of cycles, but high-inrush current pumps can weld contacts shut, leading to a "fused relay" symptom where the pump never stops. Test mechanical relays by checking for continuity across the NO (Normally Open) terminals while the output is forced on in the manual menu. Solid-state relays (SSRs) require a different approach, as they may show a small leakage current even when off. If you experience frequent relay failures, implement RC snubbers or surge suppressors across the load. These components absorb inductive spikes from solenoids and motors, extending the operational life of your Walchem hardware.

Input Card Replacement and Upgrades

The modular design of the W900 and Intuition series allows for field replacement of individual sensor input cards. This architecture minimizes downtime by allowing technicians to swap a single faulty card rather than the entire unit. When installing a new card, ensure the controller is completely powered down to prevent electrostatic discharge damage. If the display shows a "Card Not Detected" error after installation, verify that the controller is running the latest firmware. As of June 2026, Intuition models require v4.31 and W900 units require v4.27b to recognize modern hardware revisions. You can find authorized replacement components in our electric power controls collection to maintain technical integrity.

Connectivity and Communication: Ethernet, Modbus, and Fluent Support

The 'Network Not Found' error on W600 and W900 models usually indicates a physical layer disconnection or an IP address lease expiration. When troubleshooting Walchem controllers, verify the integrity of the RJ45 termination and ensure the controller's MAC address is whitelisted on the facility's security gateway. If the unit fails to ping, check the Ethernet port LEDs. A solid green light confirms a physical link, while a flashing amber light indicates active data transmission. In 2026, network security protocols have tightened, meaning many "connectivity failures" are actually blocked ports at the IT level.

Modbus TCP/IP integration often encounters register conflicts where the SCADA system expects data in a format different from the Walchem output. Ensure the Master device is polling the correct 16-bit or 32-bit registers as defined in the 2026 technical manual. In high-latency environments like deep-pit mining, increase the Modbus timeout threshold to prevent "Slave Device Timeout" alarms that disrupt remote process control. These conflicts often arise during commissioning when register maps are not perfectly synchronized between the controller and the PLC.

Walchem Fluent connectivity requires specific firewall configurations to allow outbound traffic on port 443. As of July 2026, the Fluent platform remains free of charge, but utilizing the Client API version 1.21.0 requires valid credentials and an active internet gateway. If your controller is connected but not sending email reports, the issue likely resides in the SMTP settings. Verify the server address, port (typically 465 or 587), and authentication requirements, as many industrial ISPs now block unauthenticated relaying to prevent spam. Troubleshooting Walchem controllers in this context requires a deep dive into the 'Comms' menu to verify that the 'Cloud Status' is reported as 'Connected'.

LAN and Direct Ethernet Diagnostics

• Static IPs vs. DHCP: Always assign static IP addresses to industrial hardware. DHCP leases can expire or change, causing the controller to disappear from the SCADA network during critical dosing cycles.
• Physical Layer Testing: Inspect the Ethernet port for corrosion or bent pins. In humid cooling tower environments, carbon buildup on contacts is a leading cause of intermittent connectivity.
• Configuration Tool: Utilize the Walchem configuration software via a direct laptop connection to bypass the plant network and isolate hardware faults from infrastructure issues.

Advanced Industrial Protocol Faults

Data logging integrity depends on the health of the internal SD card. A full or corrupted card will cause the controller to hang when attempting to write new logs. Periodically format the SD card or enable the "overwrite oldest data" feature to maintain continuous records. If an over-the-air (OTA) firmware update fails, do not power cycle the unit during the recovery phase. Use a USB flash drive to manually install v4.31 for Intuition series or v4.27b for W900 units to restore the operating system. For technical assistance with complex network integration, visit our electric power controls catalog to source pre-configured communication modules.

Optimizing Performance: Maintenance and Replacement Strategies

Long-term reliability in industrial water treatment depends on shifting from reactive troubleshooting Walchem controllers to a structured preventative maintenance (PM) program. While these units are engineered for durability, environmental stressors such as thermal cycling and chemical vapors eventually degrade hardware integrity. A consistent PM schedule ensures that critical dosing parameters remain within tolerance and prevents catastrophic system failure during high-demand production cycles. Proactive maintenance is particularly vital for facilities operating in the mining and military sectors where technical integrity is non-negotiable.

Determining when to retire a legacy unit is a critical financial decision. The "Repair vs. Replace" framework suggests that if a discontinued model requires a motherboard or high-cost display replacement, a full system upgrade is often the more economical path. As of June 2023, several legacy models including the W100P, W400, and original W600 moved to "Discontinued Tech Support" status. Upgrading to the Intuition-9 series provides immediate benefits for complex mining wastewater treatment, including enhanced data logging and secure cloud integration via the Walchem Fluent platform.

Preventative Maintenance Checklist

• Quarterly Calibration: Perform verification using NIST-traceable standards to confirm sensor accuracy. This minimizes the risk of compliance failures due to signal drift.
• Annual Terminal Inspection: Tighten all power and relay connections. Mechanical vibration often loosens terminal blocks, which leads to the relay chatter and voltage drops discussed in previous sections.
• Moisture Seal Verification: Inspect the enclosure gasket for cracks or compression set. Chemical ingress is a primary cause of internal CPU failure and short circuits.
• Battery Replacement: Replace internal lithium batteries every three to five years. This prevents the loss of internal clock settings and memory backups during facility power outages.

Strategic Replacement and Scaling

Scaling industrial processes involves moving from single-parameter W100 units to multi-input Intuition-9 controllers. This consolidation reduces the physical footprint of your control skid and centralizes data management. For specialized applications, such as integrating Walchem hardware into mobile ultrafiltration plants, our Provo, Utah engineering team provides custom programming and commissioning services. We specialize in modular system integration that aligns controller logic with specific hydraulic requirements.

Water Services, Inc. functions as a technical partner for global industrial facilities. We provide on-site commissioning and custom engineering support to ensure your system operates at peak efficiency. If your troubleshooting Walchem controllers efforts reveal systemic hardware age or repeated card failures, our team can specify the exact replacement components or upgraded assemblies needed to restore technical stability. Maintaining a stable water treatment process requires the right balance of seasoned expertise and modern hardware solutions.

Securing Long-Term Industrial Process Stability

Effective troubleshooting Walchem controllers requires a shift from reactive repairs to predictive system management. By isolating sensor drift from hardware failure and maintaining current firmware versions, you ensure your water treatment process remains compliant and efficient. Utilizing the Walchem Fluent platform for remote monitoring further reduces the risk of unobserved alarms in critical industrial environments. These protocols protect your equipment and maintain the technical integrity of your entire control skid.

Water Services, Inc. has operated as an authorized Walchem distributor since 1994, providing expert technical support and global shipping for critical industrial components. Whether you require a single input card or a complete Intuition-9 upgrade, we maintain the inventory necessary to minimize your facility downtime. Our engineering team understands the rigors of mining and military sectors where equipment reliability is non-negotiable. We provide the technical specifications and logistical reach required for global industrial operations.

Shop Walchem Controllers and Replacement Parts

Maintain the technical integrity of your facility with precision hardware and verified diagnostic protocols.

Frequently Asked Questions

Why is my Walchem W100 screen blank but the green light is on?

A blank screen with a green "heartbeat" LED typically indicates a loose internal ribbon cable or a failed display backlight. High vibration in industrial settings can disconnect the display from the motherboard over time. Open the enclosure and verify the seating of the ribbon cable before assuming a full hardware failure. If the contrast has been inadvertently adjusted to an extreme level, the screen may also appear blank.

How do I clear a 'Limit Timer' alarm on my Walchem W600?

Clear a 'Limit Timer' alarm by entering the alarm menu and selecting the 'Reset' option for the specific output. This alarm triggers when a pump or valve remains active longer than the programmed safety duration without reaching the setpoint. To prevent recurrence, verify that your chemical supply is not empty and check for pump prime issues. Adjusting the 'Max Time' setting may be necessary for high-volume dosing requirements.

Can I use a non-Walchem pH sensor with an Intuition series controller?

You can use third-party pH sensors with the Intuition series if the BNC connector and temperature compensation (ATC) wiring are compatible. However, utilizing authorized Walchem sensors ensures the highest level of technical integrity and calibration accuracy. When troubleshooting Walchem controllers with non-brand sensors, verify that the mV signal matches standard pH scales and that the controller is set to the correct temperature input type.

What causes a 'No Flow' alarm when my pump is clearly running?

A 'No Flow' alarm occurs when the controller's interlock input remains open, even if the pump is physically operational. This is often caused by a fouled flow switch, a broken signal wire, or an air lock in the sensor manifold. Inspect the flow switch for mineral scale or debris. If the switch is clean, use a jumper wire to test the input terminal; if the alarm clears, the switch requires replacement.

How do I update the firmware on my Walchem W900 controller?

Update the W900 firmware by downloading the latest version, v4.27b, to a FAT32-formatted USB flash drive. Insert the drive into the internal USB port and select 'Software Upgrade' from the system menu. Do not interrupt power during this process. Maintaining current firmware is a critical step in troubleshooting Walchem controllers to ensure compatibility with modern communication modules and the Fluent cloud interface.

Why is my 4-20mA output reading 0 even when the controller shows a value?

A zero reading on a 4-20mA output usually indicates an open loop or a blown fuse on the analog output card. Use a loop simulator to verify if the controller is generating a current signal. If the simulator detects a signal at the terminal but the remote device does not, the issue lies in the field wiring. If no signal is detected at the terminals, the internal output card likely requires replacement.

How often should I calibrate my Walchem conductivity sensor in a mining application?

In demanding mining applications, calibrate conductivity sensors monthly or quarterly depending on the rate of mineral scaling. Use NIST-traceable calibration standards to ensure data accuracy. High solids or oily wastewater will require more frequent cleaning and verification. Sluggish response times during these checks are a primary indicator that the sensor electrodes are fouled or reaching the end of their operational life.

Does Walchem Fluent require a subscription for remote troubleshooting?

Walchem Fluent does not require a subscription fee for remote monitoring and troubleshooting as of May 2026. The platform provides free access to data logging, alarm management, and remote configuration tools. To utilize this service, the controller must have an active Ethernet or cellular connection and be configured to communicate with the Fluent servers via port 443. This cloud integration simplifies the diagnostic process for global industrial facilities.
